SA286

SA286; Minerva Ital-Minerva (ID = 280297) Radio SA286; Minerva Ital-Minerva (ID = 280299) Radio
SA286; Minerva Ital-Minerva (ID = 280301) Radio SA286; Minerva Ital-Minerva (ID = 280302) Radio
SA286; Minerva Ital-Minerva (ID = 280304) Radio
Use red slider bar for more.

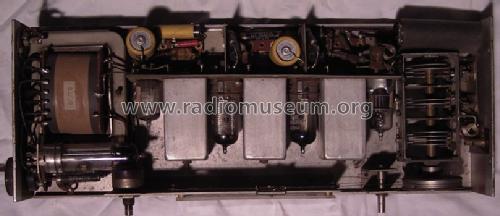

SA286; Minerva Ital-Minerva (ID = 280297) Radio
Minerva Ital-Minerva: SA286 [Radio] ID = 280297 933x202
Select picture or schematic to display from thumbnails on the right and click for download.
For model SA286, Minerva (Ital-Minerva); Milano

Country:  Italy
Manufacturer / Brand:  Minerva (Ital-Minerva); Milano
alternative name

Cozzi Luigi Dell'Aquila
Year: 1952 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6J6 EF42 EF42 6AL5 AZ41
Wave bands FM Broadcast Band Only
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: SA286 - Minerva Ital-Minerva; Milano
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 350 x 52 x 136 mm / 13.8 x 2 x 5.4 inch
Source of data - - Data from my own collection

Model page created by Giovanni Carenini. See "Data change" for further contributors.



All listed radios etc. from Minerva (Ital-Minerva); Milano
Here you find 237 models, 190 with images and 130 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
