Tempo 38W Type 1938

Tempo 38W; Minerva-Radio (ID = 303352) Radio

Tempo 38W; Minerva-Radio (ID = 350980) Radio

Tempo 38W; Minerva-Radio (ID = 891410) Radio
Tempo 38W; Minerva-Radio (ID = 1672393) Radio Tempo 38W; Minerva-Radio (ID = 150705) Radio
Tempo 38W; Minerva-Radio (ID = 229842) Radio Tempo 38W; Minerva-Radio (ID = 229841) Radio
Tempo 38W; Minerva-Radio (ID = 39985) Radio Tempo 38W; Minerva-Radio (ID = 150703) Radio
Tempo 38W; Minerva-Radio (ID = 229839) Radio Tempo 38W; Minerva-Radio (ID = 1672395) Radio
Tempo 38W; Minerva-Radio (ID = 1672397) Radio
Use red slider bar for more.

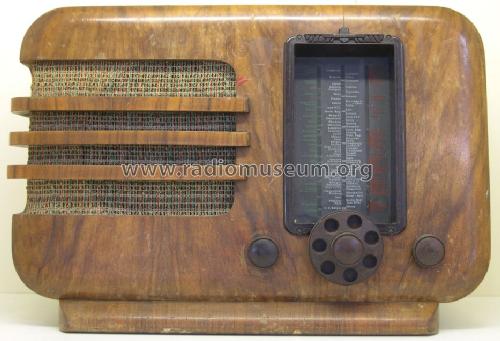

Tempo 38W; Minerva-Radio (ID = 1672393) Radio
Minerva-Radio: Tempo 38W [Radio] ID = 1672393 933x637
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tempo 38W Type 1938, Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien

Country:  Austria
Manufacturer / Brand:  Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: EK2 EBC3 EL3 AZ1
Main principle Super-Heterodyne (Super in general); ZF/IF 128,5 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Tempo 38W [Type 1938] - Minerva-Radio Radiola-
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 465 x 317 x 220 mm / 18.3 x 12.5 x 8.7 inch
Net weight (2.2 lb = 1 kg) 10.2 kg / 22 lb 7.5 oz (22.467 lb)
Price in first year of sale 345.00 ATS
Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange + Schenk
Literature/Schematics (1) -- Original-techn. papers.
