Egadi UCM583/F

Egadi UCM583/F; Mivar VAR; Milano (ID = 355558) Radio
Egadi UCM583/F; Mivar VAR; Milano (ID = 245467) Radio Egadi UCM583/F; Mivar VAR; Milano (ID = 245470) Radio
Egadi UCM583/F; Mivar VAR; Milano (ID = 245469) Radio Egadi UCM583/F; Mivar VAR; Milano (ID = 245468) Radio
Egadi UCM583/F; Mivar VAR; Milano (ID = 389776) Radio Egadi UCM583/F; Mivar VAR; Milano (ID = 389777) Radio
Egadi UCM583/F; Mivar VAR; Milano (ID = 389778) Radio Egadi UCM583/F; Mivar VAR; Milano (ID = 389779) Radio
Egadi UCM583/F; Mivar VAR; Milano (ID = 389780) Radio Egadi UCM583/F; Mivar VAR; Milano (ID = 389781) Radio
Use red slider bar for more.
Egadi UCM583/F; Mivar VAR; Milano (ID = 245467) Radio
Mivar VAR; Milano: Egadi UCM583/F [Radio] ID = 245467 900x670
Select picture or schematic to display from thumbnails on the right and click for download.
For model Egadi UCM583/F, Mivar (VAR); Milano

Country:  Italy
Manufacturer / Brand:  Mivar (VAR); Milano
Year: 1958/1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EABC80 EM81 UL84 UY85
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and FM or UHF.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Egadi UCM583/F - Mivar VAR; Milano

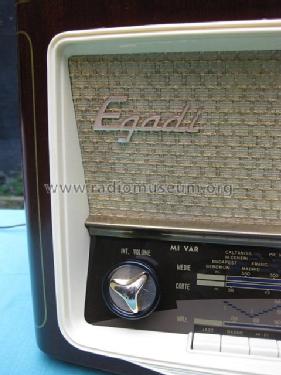

Material Wooden case

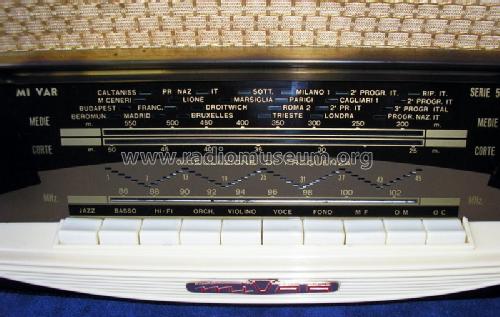

Shape Tablemodel with Push Buttons.
Dimensions (WHD) 485 x 312 x 310 mm / 19.1 x 12.3 x 12.2 inch
Notes

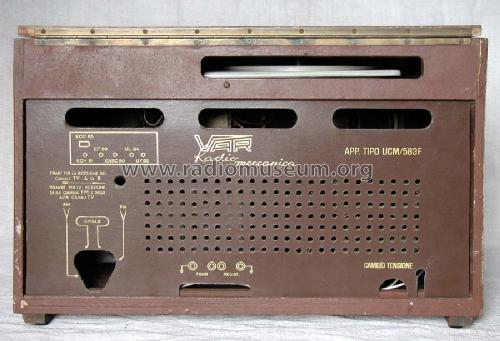

Giradischi a 4 velocità marchiato Mivar ma di produzione Lesa. con 2 puntine, rossa per microsolco e verde per 78 giri. Ulteriore presa fono e registratore.

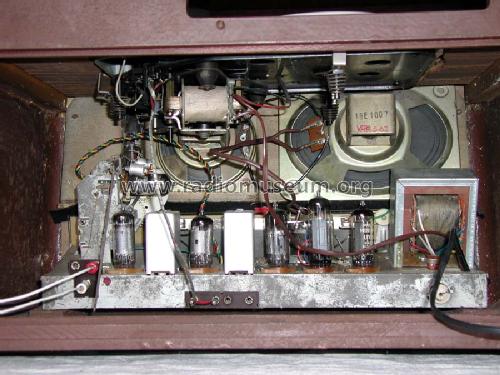

Stesso chassis e componenti del modello Cipro.

Net weight (2.2 lb = 1 kg) 11 kg / 24 lb 3.7 oz (24.229 lb)
Source of data Guida Pratica Antique Radio II (2000)

Model page created by Paolo De Pasqual. See "Data change" for further contributors.
