Samar extra

Samar extra ; Mivar VAR; Milano (ID = 613886) Radio

Samar extra ; Mivar VAR; Milano (ID = 613887) Radio
Samar extra ; Mivar VAR; Milano (ID = 196456) Radio Samar extra ; Mivar VAR; Milano (ID = 196460) Radio

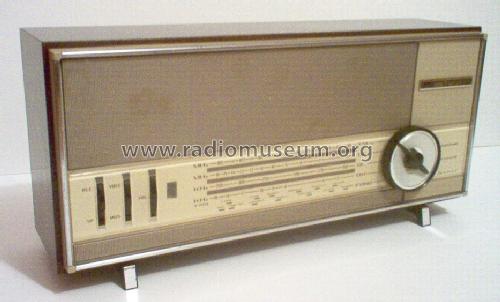

Samar extra ; Mivar VAR; Milano (ID = 196459) Radio Samar extra ; Mivar VAR; Milano (ID = 196458) Radio
Samar extra ; Mivar VAR; Milano (ID = 245529) Radio Samar extra ; Mivar VAR; Milano (ID = 245530) Radio
Samar extra ; Mivar VAR; Milano (ID = 245531) Radio Samar extra ; Mivar VAR; Milano (ID = 759583) Radio
Samar extra ; Mivar VAR; Milano (ID = 759584) Radio Samar extra ; Mivar VAR; Milano (ID = 759585) Radio
Use red slider bar for more.
Samar extra ; Mivar VAR; Milano (ID = 196456) Radio
Mivar VAR; Milano: Samar extra [Radio] ID = 196456 933x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Samar extra, Mivar (VAR); Milano

Country:  Italy
Manufacturer / Brand:  Mivar (VAR); Milano
Year: 1966 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 UL84 UY85
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Samar extra - Mivar VAR; Milano
Material Wooden case
Dimensions (WHD) 440 x 207 x 131 mm / 17.3 x 8.1 x 5.2 inch
Notes Ingresso Fono/registratore DIN 5 poli/180°. Commutatore per ricezione audio TV. Phono/tape input via DIN pentapolar socket 180°. Rear switch for TV audio reception. Modello "Samar extra" con mobile in legno. Esiste il modello "Samar" con mobile in plastica. Model "Samar extra" with wooden case. Model "Samar" has plastic case.
Net weight (2.2 lb = 1 kg) 4.2 kg / 9 lb 4 oz (9.251 lb)
Source of data - - Data from my own collection

Model page created by Carlo Mancini. See "Data change" for further contributors.
