Samar Fono

Samar Fono ; Mivar VAR; Milano (ID = 2223213) Radio Samar Fono ; Mivar VAR; Milano (ID = 2223214) Radio
Samar Fono ; Mivar VAR; Milano (ID = 2223215) Radio Samar Fono ; Mivar VAR; Milano (ID = 2223216) Radio
Samar Fono ; Mivar VAR; Milano (ID = 2223217) Radio
Use red slider bar for more.
Samar Fono ; Mivar VAR; Milano (ID = 2223213) Radio
Mivar VAR; Milano: Samar Fono [Radio] ID = 2223213 1400x820
Select picture or schematic to display from thumbnails on the right and click for download.

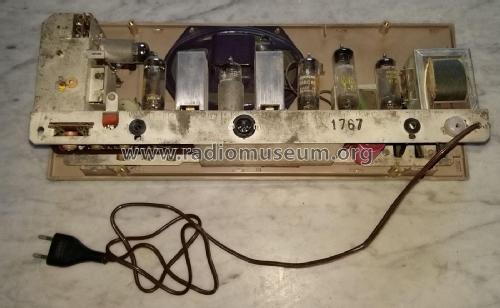

For model Samar Fono, Mivar (VAR); Milano

Country:  Italy
Manufacturer / Brand:  Mivar (VAR); Milano
Year: 1968 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 UL84 UY85
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Samar Fono - Mivar VAR; Milano
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 440 x 245 x 300 mm / 17.3 x 9.6 x 11.8 inch
Notes

Giradischi a 4 velocità, con una sola puntina.

Riceve anche audio TV.

Mentioned in -- Collector info (Sammler)

Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.



All listed radios etc. from Mivar (VAR); Milano
Here you find 117 models, 105 with images and 67 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
