Cherso UCM-613/F

Cherso UCM-613/F; Mivar VAR; Milano (ID = 1183984) Radio
Cherso UCM-613/F; Mivar VAR; Milano (ID = 1288401) Radio Cherso UCM-613/F; Mivar VAR; Milano (ID = 1288402) Radio
Cherso UCM-613/F; Mivar VAR; Milano (ID = 1288403) Radio Cherso UCM-613/F; Mivar VAR; Milano (ID = 1564573) Radio
Cherso UCM-613/F; Mivar VAR; Milano (ID = 1564574) Radio Cherso UCM-613/F; Mivar VAR; Milano (ID = 1564575) Radio
Cherso UCM-613/F; Mivar VAR; Milano (ID = 1564576) Radio Cherso UCM-613/F; Mivar VAR; Milano (ID = 1564577) Radio
Cherso UCM-613/F; Mivar VAR; Milano (ID = 1659578) Radio Cherso UCM-613/F; Mivar VAR; Milano (ID = 1659579) Radio
Use red slider bar for more.
Cherso UCM-613/F; Mivar VAR; Milano (ID = 1288401) Radio
Mivar VAR; Milano: Cherso UCM-613/F [Radio] ID = 1288401 933x585
Select picture or schematic to display from thumbnails on the right and click for download.
For model Cherso UCM-613/F, Mivar (VAR); Milano:

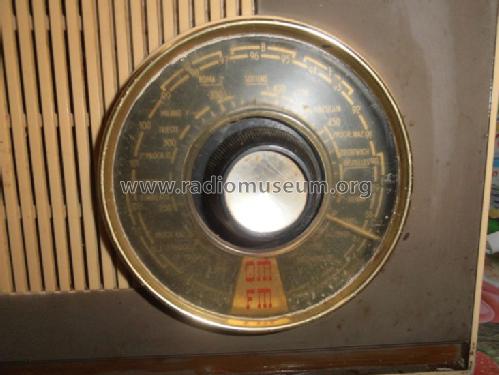

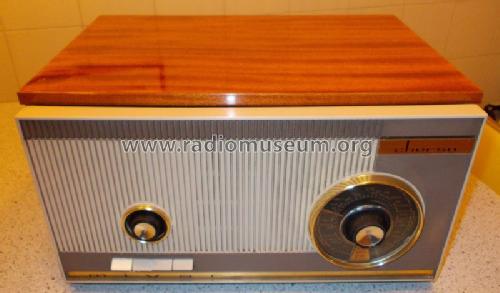

Mivar Cherso UCM-613/F.
Foto per cortesia di M. Malagnini

Country:  Italy
Manufacturer / Brand:  Mivar (VAR); Milano
Year: 1961/1962 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 UL84 UY85
Main principle Superheterodyne (common); ZF/IF ? /10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Cherso UCM-613/F - Mivar VAR; Milano
Material Wooden case
Shape Tablemodel with Push Buttons.
Notes Giradischi 4 velocità.
Source of data Guida Pratica Antique Radio IV (2001)

Model page created by Giorgio Costa. See "Data change" for further contributors.



All listed radios etc. from Mivar (VAR); Milano
Here you find 117 models, 105 with images and 67 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
