Ideal Radio S7640

Ideal Radio S7640; Modry Bod, Praha- (ID = 11704) Radio
Ideal Radio S7640; Modry Bod, Praha- (ID = 2449171) Radio Ideal Radio S7640; Modry Bod, Praha- (ID = 2449173) Radio
Ideal Radio S7640; Modry Bod, Praha- (ID = 2449175) Radio Ideal Radio S7640; Modry Bod, Praha- (ID = 2449182) Radio
Ideal Radio S7640; Modry Bod, Praha- (ID = 2449176) Radio Ideal Radio S7640; Modry Bod, Praha- (ID = 2449178) Radio
Ideal Radio S7640; Modry Bod, Praha- (ID = 2449179) Radio Ideal Radio S7640; Modry Bod, Praha- (ID = 2449180) Radio
Ideal Radio S7640; Modry Bod, Praha- (ID = 52536) Radio Ideal Radio S7640; Modry Bod, Praha- (ID = 52537) Radio
Use red slider bar for more.

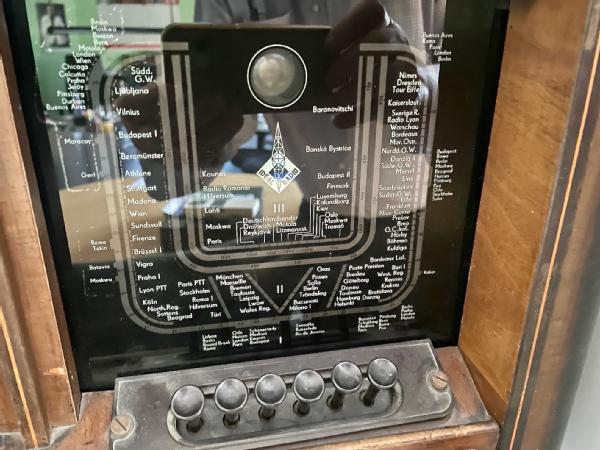

Ideal Radio S7640; Modry Bod, Praha- (ID = 2449171) Radio
Modry Bod, Praha-: Ideal Radio S7640 [Radio] ID = 2449171 1400x816
Select picture or schematic to display from thumbnails on the right and click for download.
For model Ideal Radio S7640, Modry Bod, Praha-Kolin

Country:  Czechoslovakia
Manufacturer / Brand:  Modry Bod, Praha-Kolin
Brand

Ideal-Radio (Blaupunkt CS)
Year: 1940/1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH11 EBF11 EL11 AZ11 EFM11
Main principle Superheterodyne (common); ZF/IF 491 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: Ideal Radio S7640 - Modry Bod, Praha-Kolin
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 546 x 329 x 282 mm / 21.5 x 13 x 11.1 inch
Net weight (2.2 lb = 1 kg) 15 kg / 33 lb 0.6 oz (33.04 lb)
External source of data Erb
Source of data Ceskoslovenske prijimace 1933-1945, Baudys 1947


All listed radios etc. from Modry Bod, Praha-Kolin
Here you find 41 models, 34 with images and 40 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
