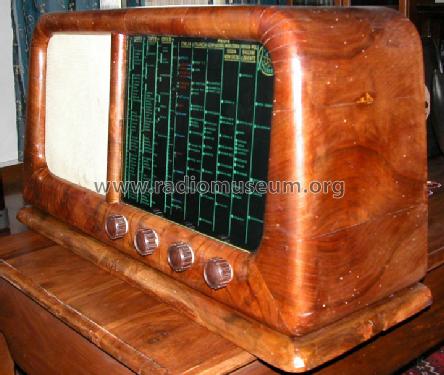

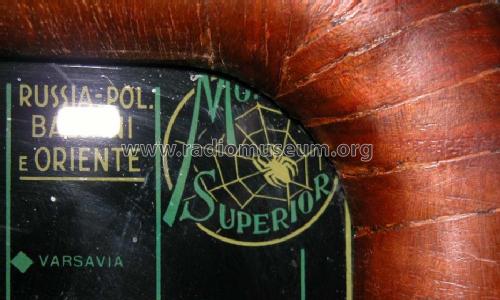

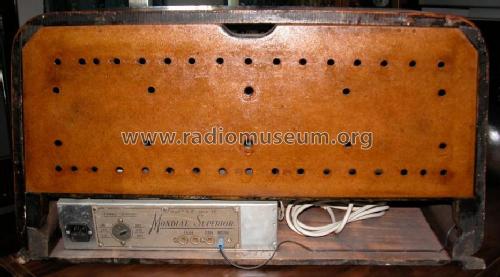

S2; Mondial Mondiale (ID = 325393) Radio S2; Mondial Mondiale (ID = 325400) Radio
S2; Mondial Mondiale (ID = 325402) Radio S2; Mondial Mondiale (ID = 325394) Radio
S2; Mondial Mondiale (ID = 325395) Radio S2; Mondial Mondiale (ID = 325397) Radio
S2; Mondial Mondiale (ID = 325398) Radio
Use red slider bar for more.

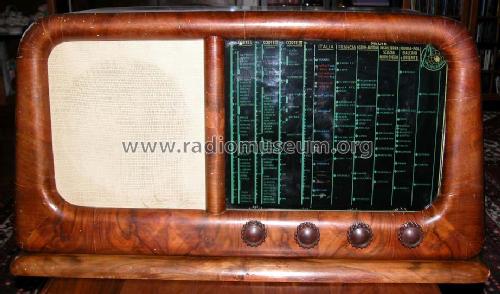

S2; Mondial Mondiale (ID = 325393) Radio
Mondial Mondiale: S2 [Radio] ID = 325393 922x543
Select picture or schematic to display from thumbnails on the right and click for download.
For model S2, Mondial (Mondiale) Superior; (where? dove?)

Country:  Italy
Manufacturer / Brand:  Mondial (Mondiale) Superior; (where? dove?)
Year: 1946 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A8 6K7 6Q7 6V6 5Y3
Main principle Superheterodyne (common)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 220; 260 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: S2 - Mondial Mondiale Superior;
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 740 x 390 x 270 mm / 29.1 x 15.4 x 10.6 inch
Notes Gamme d'onda: -OM 190-580mt -OC1 170-55mt -OC2 55-27mt -OC3 27-13mt
Source of data - - Data from my own collection

Model page created by Pietro Gallia. See "Data change" for further contributors.
