Âuza - Яуза

Âuza - Яуза ; MEMZA (ID = 672167) R-Player
Âuza - Яуза ; MEMZA (ID = 983005) R-Player Âuza - Яуза ; MEMZA (ID = 983009) R-Player
Âuza - Яуза ; MEMZA (ID = 2265131) R-Player Âuza - Яуза ; MEMZA (ID = 2265132) R-Player
Âuza - Яуза ; MEMZA (ID = 2265129) R-Player Âuza - Яуза ; MEMZA (ID = 2265130) R-Player
Âuza - Яуза ; MEMZA (ID = 672166) R-Player Âuza - Яуза ; MEMZA (ID = 1132000) R-Player
Âuza - Яуза ; MEMZA (ID = 1132002) R-Player Âuza - Яуза ; MEMZA (ID = 1132003) R-Player
Use red slider bar for more.
Âuza - Яуза ; MEMZA (ID = 983005) R-Player

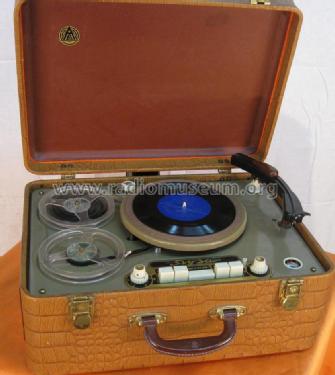

MEMZA: Âuza - Яуза [R-Player] ID = 983005 835x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model Âuza - Яуза, MEMZA Electromechanical Works (ex VTU), Moscow

Country:  Soviet Union
Manufacturer / Brand:  MEMZA Electromechanical Works (ex VTU), Moscow
Year: 1956 Category: Sound/Video Recorder and/or Player
Valves / Tubes 6: 6Ж8 6Н2П 6П1П 6П1П 6Е5С 6Ц4П
Main principle Audio-Amplification
Wave bands - without
Details Record Player + Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110; 127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Âuza - Яуза - MEMZA Electromechanical Works
Material Leather / canvas / plastic - over other material
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 470 x 360 x 215 inch / 11938 x 9144 x 5461 mm
Notes Plattenspieler 78/33 Upm. Tonband 1/2" Spur 19,5 / 8,13 cm/s. Röhrengerät, Magisches Auge.
Tube Record player 78/33 rpm. and two speeds. Tape recorder - 19,5 / 8,13 cm/sec - in one.
Net weight (2.2 lb = 1 kg) 18 kg / 39 lb 10.4 oz (39.648 lb)
Collectors' prices
Source of data -- Schematic
Mentioned in N.V.Kurbatov, E.B.Janovskij "MRB" 1966/606

Model page created by Wolfgang Lill. See "Data change" for further contributors.



All listed radios etc. from MEMZA Electromechanical Works (ex VTU), Moscow
Here you find 18 models, 18 with images and 14 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
