Ûnost' - Юность - Junost 402BE

Ûnost' - Юность - Junost 402BE; Moscow Radio (ID = 611738) Television

Ûnost' - Юность - Junost 402BE; Moscow Radio (ID = 611740) Television

Ûnost' - Юность - Junost 402BE; Moscow Radio (ID = 611741) Television

Ûnost' - Юность - Junost 402BE; Moscow Radio (ID = 611743) Television

Ûnost' - Юность - Junost 402BE; Moscow Radio (ID = 611744) Television
Ûnost' - Юность - Junost 402BE; Moscow Radio (ID = 452546) Television Ûnost' - Юность - Junost 402BE; Moscow Radio (ID = 452547) Television
Ûnost' - Юность - Junost 402BE; Moscow Radio (ID = 841831) Television Ûnost' - Юность - Junost 402BE; Moscow Radio (ID = 841832) Television
Ûnost' - Юность - Junost 402BE; Moscow Radio (ID = 1472242) Television Ûnost' - Юность - Junost 402BE; Moscow Radio (ID = 1472243) Television
Ûnost' - Юность - Junost 402BE; Moscow Radio (ID = 1472244) Television Ûnost' - Юность - Junost 402BE; Moscow Radio (ID = 1624488) Television
Use red slider bar for more.

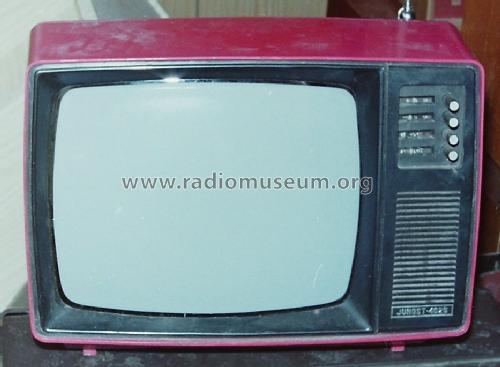

Ûnost' - Юность - Junost 402BE; Moscow Radio (ID = 452546) Television
Moscow Radio: Ûnost' - Юность - Junost 402BE [Television] ID = 452546 795x599
Select picture or schematic to display from thumbnails on the right and click for download.
For model Ûnost' - Юность - Junost 402BE, Moscow Radio engineering Works

Country:  Soviet Union
Manufacturer / Brand:  Moscow Radio engineering Works
Year: 1977 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 1: 31ЛК4Б
Semiconductors (the count is only for transistors) 32:
Main principle Super-Heterodyne (Super in general); ZF/IF 38900 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Line / Batteries (any type) / 220; 12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.75 W (unknown quality)
from Radiomuseum.org Model: Ûnost' - Юность - Junost 402BE - Moscow Radio engineering Works
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 392 x 297 x 290 mm / 15.4 x 11.7 x 11.4 inch
Notes Tragbarer s/w TV mit 4 Programmtasten, CCIR B/G VHF/UHF Tuner, Deutsche Gerätebeschriftung.
Ausgangsleistung bei Akkubetrieb 0,5 Watt
Bildröhre 110°
Leistungsaufnahme bei Akkubetrieb 14 Watt.
Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)
Price in first year of sale 245.00 ruble
Collectors' prices
Source of data -- Collector info (Sammler)

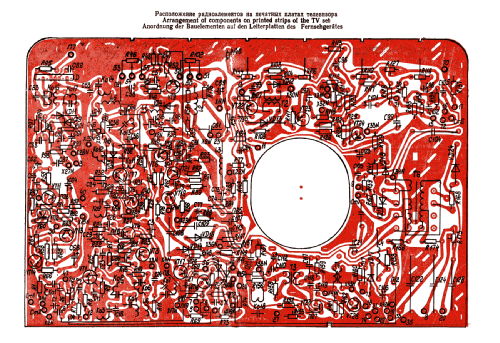

Literature/Schematics (1) -- Original-techn. papers.

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from Moscow Radio engineering Works
Here you find 23 models, 21 with images and 11 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
