- Country
- United States of America (USA)
- Manufacturer / Brand
- Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Year
- 1950 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 339723
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 24
- Valves / Tubes
- 6AG5 6J6 6AG5 6AG5 6AG5 6AL5 6BA6 6V6GT 6AS5 12AX7 6AU6 6AL5 6SL7GT 6V6GT 12AU7 6SN7GT 25L6GT 6SL7GT 6CD6G 6W4GT 1B3GT 5U4G 5U4G 19AP4
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 19K1 - Motorola Inc. ex Galvin Mfg.Co
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
Motorola model 19K1 is a 21” b/w TV with US standard VHF tuner channels 2 thru 13.
Equipped with VHF tuner 1X790700 and picture tube 19AP4.
- Literature/Schematics (1)

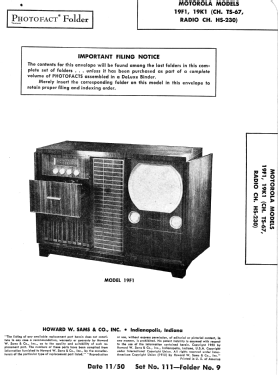

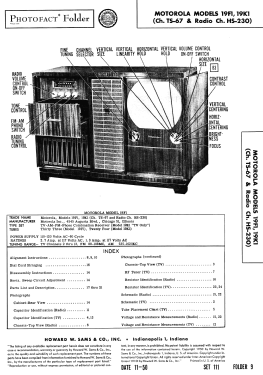

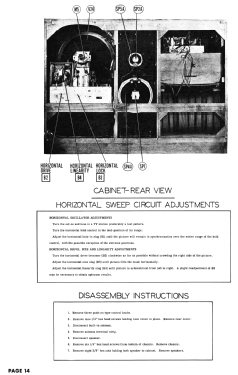

- Photofact Folder, Howard W. SAMS (Set 111, Folder 9 dated 11-50)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
