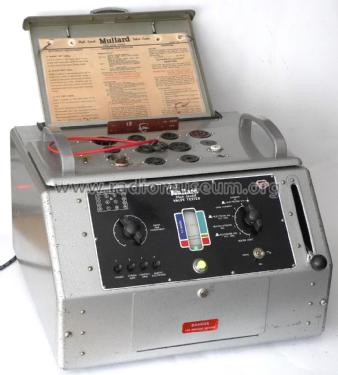

High Speed Valve Tester E7600
Mullard Wireless, London (see also Mullard Radio Valve)
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Mullard Wireless, London (see also Mullard Radio Valve)
- Year
- 1965 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 197144

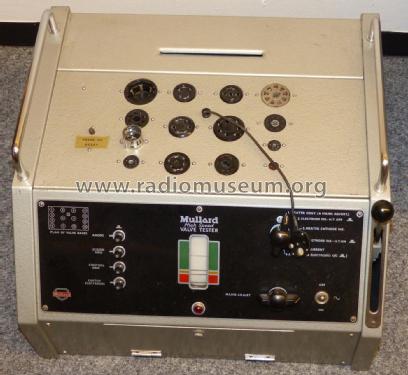

Gerät steht im “Das Rundfunkmuseum“ in Cham.
E7600/4
E7600/4
E7600/4

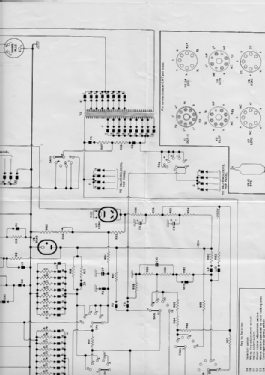

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 180; 200; 220; 240 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: High Speed Valve Tester E7600 - Mullard Wireless, London see
- Shape
- Tablemodel, slant panel.
- Notes

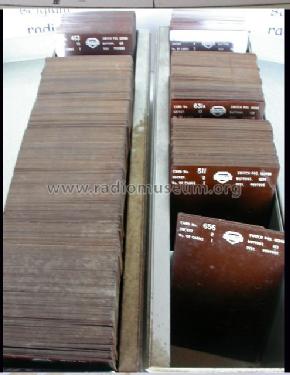

- Tube tester with CRT for result indication; programming by slot-in test cards.
- Mentioned in
- -- Schematic
- Author
- Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
