For model MAS1838 Ch= MAS678, Mullard Wireless, London (see also Mullard Radio Valve):
By courtesy of guest Albert van Zyl, Kempton Park, South Africa.

Country:  Great Britain (UK)
Manufacturer / Brand:  Mullard Wireless, London (see also Mullard Radio Valve)
Year: 1955 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes ECH42 unknown_Tube EAF42 EBC41 EM34 EL41 AZ41
Semiconductors (the count is only for transistors) 7:
Main principle Superheterodyne (common)
Wave bands Broadcast plus 2 Short Wave bands.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 220 Volt

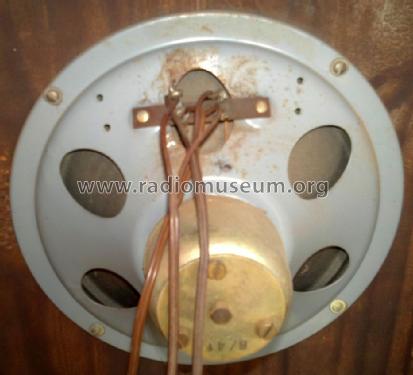

Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: MAS1838 Ch= MAS678 - Mullard Wireless, London see
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 1225 x 800 x 470 mm / 48.2 x 31.5 x 18.5 inch
Notes

For this Mullard model MAS1838 we have yet only the pictures. We try to find more data, asking the owner in South Africa. We received the dimensions and the power. The set has probably an EM34 as magic eye and we have put this into the tube line up without being sure. The model has a record changer from Monarch.

External source of data Albert van Zyl, South Africa

Model page created by Ernst Erb. See "Data change" for further contributors.
