MAS95

MAS95; Mullard Wireless, (ID = 631078) Radio MAS95; Mullard Wireless, (ID = 631079) Radio
Use red slider bar for more.

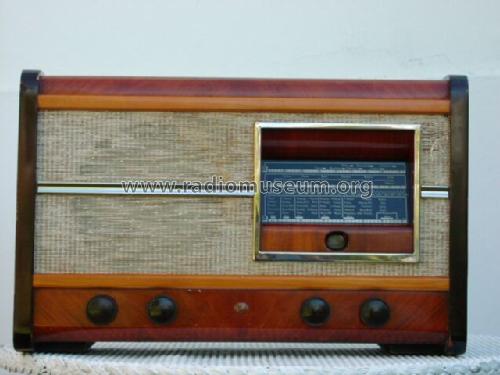

MAS95; Mullard Wireless, (ID = 631078) Radio
Mullard Wireless,: MAS95 [Radio] ID = 631078 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model MAS95, Mullard Wireless, London (see also Mullard Radio Valve):
With Pieter Deckok permission

Country:  Great Britain (UK)
Manufacturer / Brand:  Mullard Wireless, London (see also Mullard Radio Valve)
Year: 1940 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: EF8 ECH3 EBF2 EL3 AZ1
Main principle Superhet with RF-stage; ZF/IF 452 kHz; 1 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: MAS95 - Mullard Wireless, London see
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes
3 Band reception:
  • BC: 165 - 560 m.
  • SW1: 45 - 165 m.
  • SW2: 13,5 - 45 m.
Tuning scale light bulbs type: 8091D (6,3V, 640mA).
Loudspeaker Philips type 9636. Connectors for second loudspeaker and for pick-up.

This model is comparable with Siera S95A and Philips 313A.

Model page created by Meyer Rochwerger. See "Data change" for further contributors.
