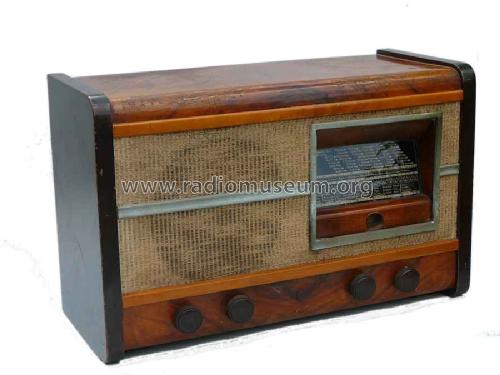

S95A; Siera; Eindhoven NL (ID = 344131) Radio
Siera; Eindhoven NL: S95A [Radio] ID = 344131 900x675
Select picture or schematic to display from thumbnails on the right and click for download.
For model S95A, Siera; Eindhoven (NL)

Country:  Netherlands
Manufacturer / Brand:  Siera; Eindhoven (NL)
Year: 1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: EF8 ECH3 EBF2 EL3 AZ1
Main principle Superhet with RF-stage; ZF/IF 452 kHz; 1 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21.5 cm = 8.5 inch
Power out
from Radiomuseum.org Model: S95A - Siera; Eindhoven NL
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 500 x 295 x 225 mm / 19.7 x 11.6 x 8.9 inch
Notes
3 Band reception:
  • BC: 165 - 560 m.
  • SW1: 45 - 165 m.
  • SW2: 13,5 - 45 m.
Tuning scale light bulbs type: 8091D (6,3V, 640mA).
Loudspeaker Philips type 9636. Connectors for second loudspeaker and for pick-up.

This model is comparable with Mullard MAS95 and Philips 313A.

Net weight (2.2 lb = 1 kg) 10.750 kg / 23 lb 10.9 oz (23.678 lb)
Mentioned in - - Manufacturers Literature (Siera memento of tubes and models 1932-1946)

Model page created by John Koster. See "Data change" for further contributors.
