X68A

X68A; Mullard Wireless, (ID = 2390778) Radio

X68A; Mullard Wireless, (ID = 2390779) Radio

X68A; Mullard Wireless, (ID = 2390780) Radio

X68A; Mullard Wireless, (ID = 2390781) Radio

X68A; Mullard Wireless, (ID = 2390782) Radio

X68A; Mullard Wireless, (ID = 2390783) Radio

X68A; Mullard Wireless, (ID = 2390784) Radio

X68A; Mullard Wireless, (ID = 2390785) Radio

X68A; Mullard Wireless, (ID = 2390786) Radio

X68A; Mullard Wireless, (ID = 2390787) Radio
X68A; Mullard Wireless, (ID = 431419) Radio X68A; Mullard Wireless, (ID = 431420) Radio
X68A; Mullard Wireless, (ID = 431421) Radio
Use red slider bar for more.
X68A; Mullard Wireless, (ID = 431419) Radio
Mullard Wireless,: X68A [Radio] ID = 431419 904x700

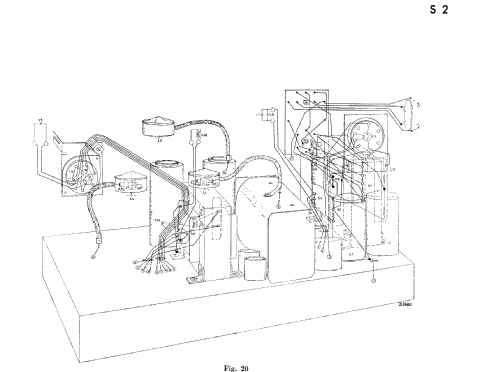

Select picture or schematic to display from thumbnails on the right and click for download.
For model X68A, Mullard Wireless, London (see also Mullard Radio Valve)

Country:  Great Britain (UK)
Manufacturer / Brand:  Mullard Wireless, London (see also Mullard Radio Valve)
Year: 1938 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: EK2 EF5 EBC3 EBL1 EM1 AZ1
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21.6 cm = 8.5 inch
Power out
from Radiomuseum.org Model: X68A - Mullard Wireless, London see
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 580 x 450 x 270 mm / 22.8 x 17.7 x 10.6 inch
Notes

Similar to the Swiss Mediator M68A Monoknopf radio.

Ähnlich dem Schweizer Mediator M68A Monoknopf.

Net weight (2.2 lb = 1 kg) 15.8 kg / 34 lb 12.8 oz (34.802 lb)
Source of data - - Data from my own collection

Model page created by José Manuel Silvestre. See "Data change" for further contributors.



All listed radios etc. from Mullard Wireless, London (see also Mullard Radio Valve)
Here you find 139 models, 107 with images and 57 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
