Meteor 600

Meteor 600; Mullard Radio (ID = 1913646) Radio

Meteor 600; Mullard Radio (ID = 1165527) Radio
Meteor 600; Mullard Radio (ID = 1377735) Radio Meteor 600; Mullard Radio (ID = 1343186) Radio
Meteor 600; Mullard Radio (ID = 1384008) Radio Meteor 600; Mullard Radio (ID = 1384010) Radio
Meteor 600; Mullard Radio (ID = 1384013) Radio Meteor 600; Mullard Radio (ID = 2356060) Radio
Use red slider bar for more.
Meteor 600; Mullard Radio (ID = 1377735) Radio
Mullard Radio: Meteor 600 [Radio] ID = 1377735 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Meteor 600, Mullard Radio Company (Australia) Ltd.; Sydney

Country:  Australia
Manufacturer / Brand:  Mullard Radio Company (Australia) Ltd.; Sydney
Year: 1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH35 EBF35 6V6GT 6X5GT
Main principle Superheterodyne (common); ZF/IF 455 kHz; 1 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 220-260 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: Meteor 600 - Mullard Radio Company
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 243 x 160 x 160 mm / 9.6 x 6.3 x 6.3 inch
Notes

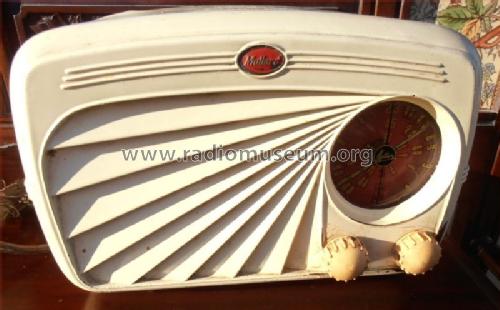

Radio front designed as a Meteor shower.

See also Philips version, Radioplayer Model 100.

Price in first year of sale 19.95 AUS £
Source of data -- Collector info (Sammler)
Circuit diagram reference Australian Official Radio Service Manual Vol. VI
Mentioned in Silicon Chip, February 2010
Literature/Schematics (1) - - Manufacturers Literature (Mullard Master Radio Service Data.)
Literature/Schematics (2) Australian Official Radio Service Manual AORSM (Volume 6, 1948, Page 312.)

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from Mullard Radio Company (Australia) Ltd.; Sydney
Here you find 123 models, 38 with images and 45 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
