- Country
- Great Britain (UK)
- Manufacturer / Brand
- Murphy Radio Ltd.; Welwyn Garden City
- Year
- 1964 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 175165
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 470/10700 kHz; 4 AF stage(s)
- Tuned circuits
- 7 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 200-250 Volt
- Loudspeaker
- 4 Loudspeakers
- from Radiomuseum.org
- Model: A891SR - Murphy Radio Ltd.; Welwyn
- Notes
- Stereo radiogram (mono radio) fitted with Garrard record unit. Circuit similar to model A881SR except for speaker cross-over network.

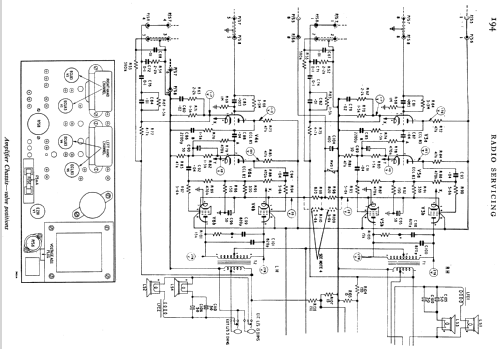

- Circuit diagram reference
- Radio and TV Servicing books (R&TVS) book
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Keith Staines. See "Data change" for further contributors.
