• Year
  • 1986 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 80368

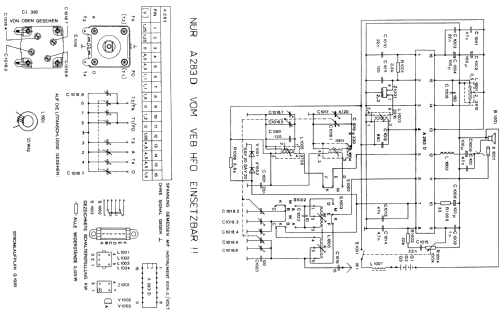

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Dry Batteries / AA: 3 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 cm = 1.8 inch
  • Power out
  • 0.14 W (max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

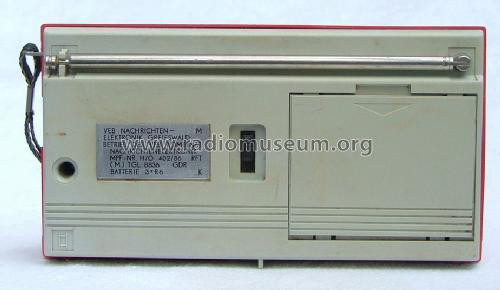

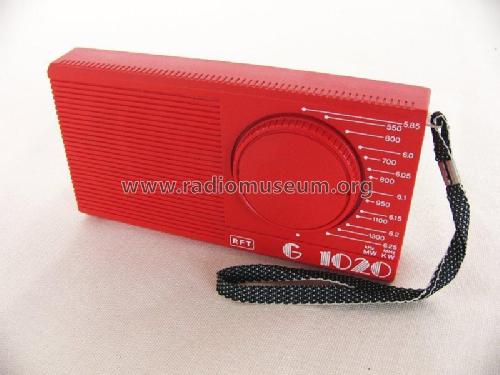

  • Model: Taschenempfänger MW KW G1020 - Nachrichtenelektronik
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 150 x 80 x 35 mm / 5.9 x 3.1 x 1.4 inch

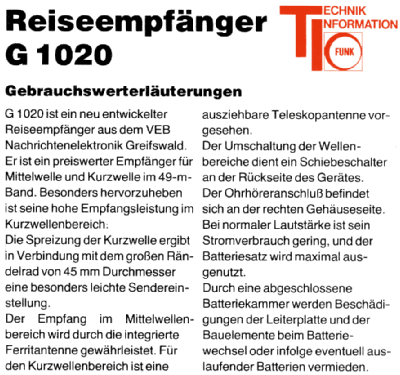

  • Notes
  • Empfängerschaltkreis A283D, ein piezokeramisches AM-Filter. 6 Kreise, davon 2 abstimmbar.

    Aktennotiz in Werkstatt-Serviceunterlagen vom Hersteller/Kundendienst
    Hinweis auf Fehler: Der Oszillator für Kurzwelle schwingt nach längerer Lagerung nicht sofort an. Der Fehler wird durch das Einloeten eines Widerstandes 22 Ohm, an Stelle der ca 5 cm langen Leitung zwischen Pin 5 und Schalter behoben. Beide Widerstandsanschlüsse sind mit I-Schlauch zu versehen.



  • Net weight (2.2 lb = 1 kg)
  • 0.285 kg / 0 lb 10 oz (0.628 lb)
  • Price in first year of sale
  • 130.00 DM
  • Source of data
  • -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb
  • Mentioned in
  • - - Manufacturers Literature (Original Bedienungsanleitung RFT G1020)
  • Author
  • Model page created by Wolfgang Lill. See "Data change" for further contributors.
