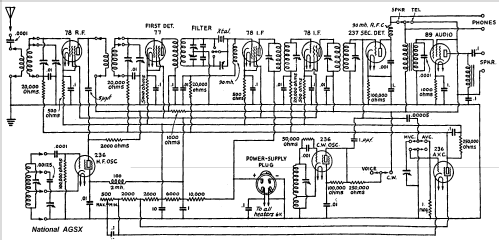

AGS-X; National Company; (ID = 282107) Commercial Re
AGS-X; National Company; (ID = 1824912) Commercial Re AGS-X; National Company; (ID = 496018) Commercial Re
AGS-X; National Company; (ID = 2008184) Commercial Re AGS-X; National Company; (ID = 2008185) Commercial Re
AGS-X; National Company; (ID = 2008186) Commercial Re AGS-X; National Company; (ID = 2008187) Commercial Re
AGS-X; National Company; (ID = 2008188) Commercial Re AGS-X; National Company; (ID = 2008189) Commercial Re
Use red slider bar for more.
AGS-X; National Company; (ID = 1824912) Commercial Re

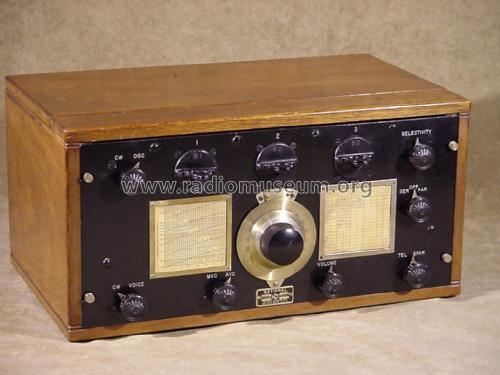

National Company;: AGS-X [Commercial Re] ID = 1824912 1024x768
Select picture or schematic to display from thumbnails on the right and click for download.
For model AGS-X, National Company; Cambridge & Malden (MA):
eBay auction # 251923815292, seller technogallery, Holland, Massachusetts, USA.

Country:  United States of America (USA)
Manufacturer / Brand:  National Company; Cambridge & Malden (MA)
alternative name

National Toy Co.
Brand
Thrillbox
Year: 1933 ? Category: Commercial Receiver (may include amateur bands)
Valves / Tubes 9: 78 236 77 78 78 237 236 236 89
Main principle Superhet with RF-stage; ZF/IF 495 kHz; 1 AF stage(s)
Wave bands Short Wave (SW only)
Details
Power type and voltage Powered by external power supply or a main unit. / 6 / 170 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: AGS-X - National Company; Cambridge &
Material Metal case
Shape Rack
Notes covering 1500 - 20000 kHz, five sets of plug-in coils, four sets of bandspread coils for amateur bands 160 - 20 m,
with crystal filter installed, CW OSC(BFO) and selectivity control in the left and right upper corner of the front panel,
matching external power supply 5886AB
Price in first year of sale 295.00 $
Source of data Communications Receivers
Literature/Schematics (1) ARRL 1934

Model page created by Martin Bösch. See "Data change" for further contributors.
