• Country
• Germany

• Manufacturer / Brand
• Neckermann-Versand KG; Frankfurt a.M.

• Year
• 1962 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 160947

• • Brand: Twen Tone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM84 EL95

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

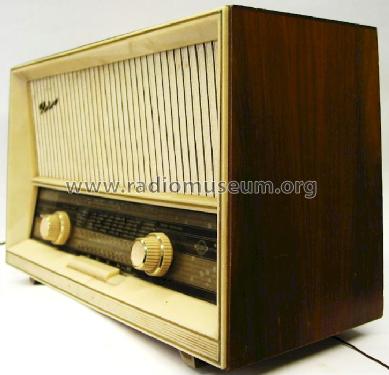

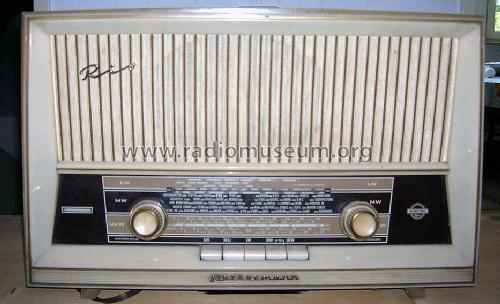

• Model: Rio 22130 Art. Nr. 821/15 - Neckermann-Versand KG;

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 430 x 270 x 170 mm / 16.9 x 10.6 x 6.7 inch

• Notes

• Neckermann Rio 821/15:
  Kunststofffront, Abstimmanzeigeröhre, DIN Phono-in, Buchsen für ext. Lautsprecher und Antennen.

  Erzeugt von Körting.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Literature/Schematics (4)

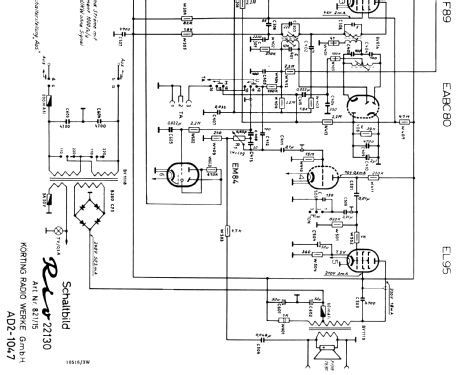

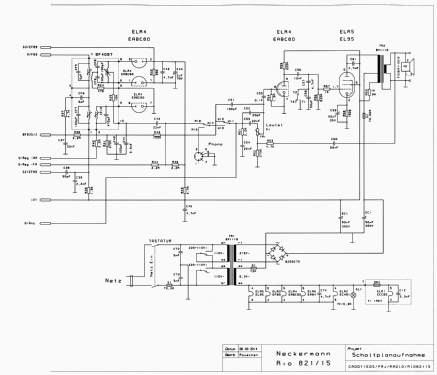

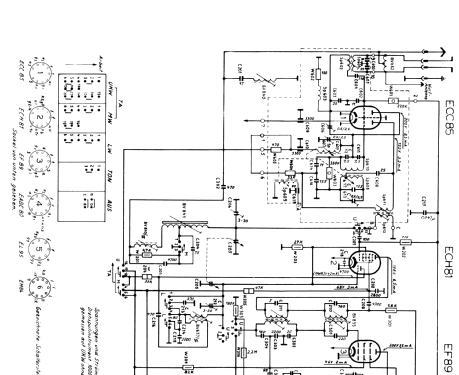

• -- Schematic

• Author
• Model page created by a member from A. See "Data change" for further contributors.
