Rio 23170 Art. Nr. 828/15
Neckermann-Versand KG; Frankfurt a.M.
- Country
- Germany
- Manufacturer / Brand
- Neckermann-Versand KG; Frankfurt a.M.
- Year
- 1960 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 187880
-
- Brand: Twen Tone

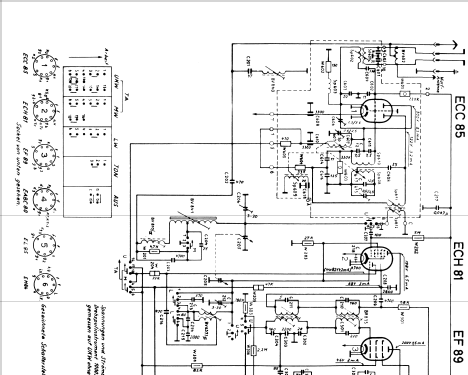

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Number of Transistors
- Semiconductors
- B250C75
- Main principle
- Superheterodyne (common); ZF/IF 468/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 2.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Rio 23170 Art. Nr. 828/15 - Neckermann-Versand KG;
- Shape
- Console with Push Buttons.
- Notes
-
Das Standgerät Rio 828/15 wurde von Körting für Neckermann Versand KG hergestellt.
Phonolaufwerk: Philips.Siehe auch Oslo 821/16.
- Literature/Schematics (1)
- -- Original-techn. papers.
- Literature/Schematics (4)
- -- Schematic
- Author
- Model page created by Mario Darmann. See "Data change" for further contributors.
