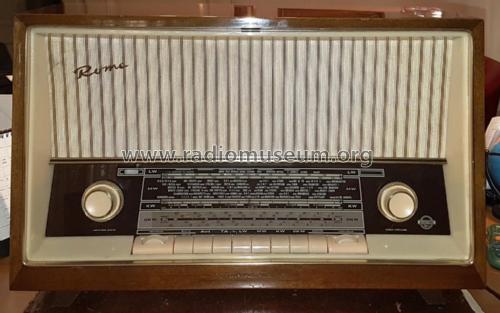

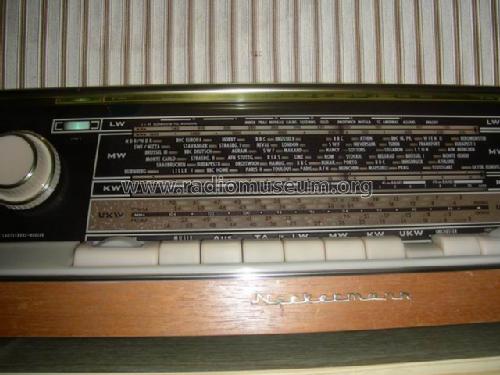

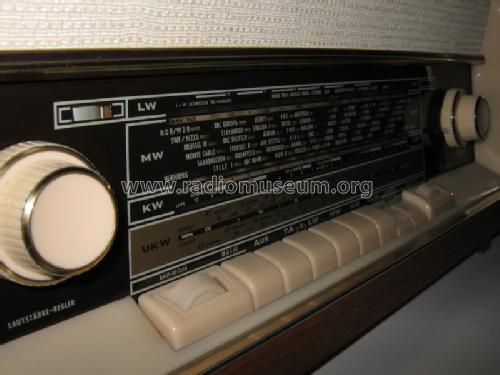

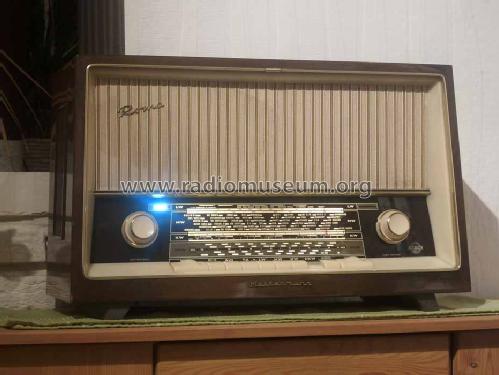

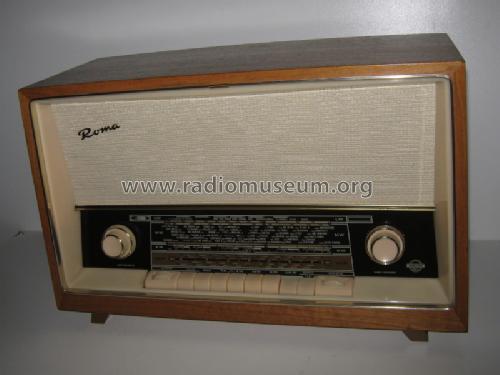

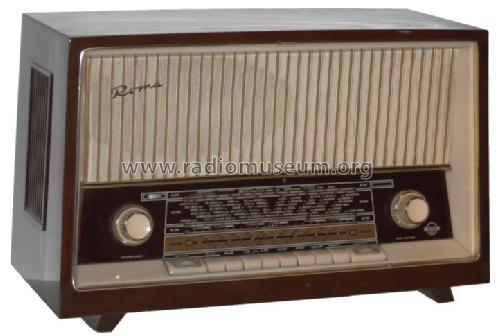

Neckermann-Versand: Roma 22330a Art.Nr. 821/23a [Radio] ID = 2556971 1024x643
Select picture or schematic to display from thumbnails on the right and click for download.
For model Roma 22330a Art.Nr. 821/23a ab Geräte Nr. 18001, Neckermann-Versand KG; Frankfurt a.M.

Country:  Germany
Manufacturer / Brand:  Neckermann-Versand KG; Frankfurt a.M.
Brand

Twen Tone
Year: 1960 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EABC80 EAM86 EL84 EZ80
Main principle Superheterodyne (common); ZF/IF 472/10700 kHz
Tuned circuits 7 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 155; 220; 240 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Roma 22330a Art.Nr. 821/23a [ab Geräte Nr. 18001] - Neckermann-Versand KG;
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 520 x 330 x 225 mm / 20.5 x 13 x 8.9 inch
Notes
Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)
Price in first year of sale 248.00 DM
Source of data Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers. (Daten Hans-Dieter Schmidt Hersteller Körting)


All listed radios etc. from Neckermann-Versand KG; Frankfurt a.M.
Here you find 543 models, 486 with images and 168 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Neckermann-Versand: Roma 22330a Art.Nr. 821/23a
Threads: 1 | Posts: 1
Hits: 1701     Replies: 0
neckermann: 821/23a; Roma 22330a
Hans-Werner Ellerbrock
04.Apr.11
  1

In dem mir vorliegenden Schaltplan dieses Modells nicht eingetragen sind 3 Feinsicherungen, die auf derselben Platte befestigt sind wie die Netzsicherung. Über diese (50mA, 100mA,200mA)  werden die Anodenspannungs-Leitungen zu den Röhren abgesichert.

Also, wenn das Gerät mal trotz Überholung nicht funktioniert, erstmal Durchgang und guten Kontakt dieser Si prüfen.
