• Country
• Germany

• Manufacturer / Brand
• Neckermann-Versand KG; Frankfurt a.M.

• Year
• 1954 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 136034

• • Brand: Twen Tone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC81 ECH81 EF41 EABC80 EM34 EL41

• Number of Transistors

• Semiconductors
• B250C75

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

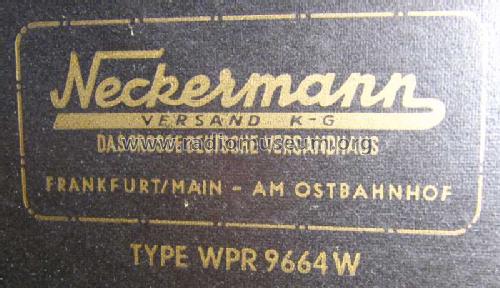

• Model: Phonosuper WPR9664W Nr. 112/10 - Neckermann-Versand KG;

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 495 x 365 x 290 mm / 19.5 x 14.4 x 11.4 inch

• Notes

• Kombination von Neckermann Standard-Super Nr. 111/10 und Phonokoffer Nr. 114/10.

  Hersteller: AWB (Apparate-Werk Bayern) für die Neckermann Versand KG, Frankfurt/Main.
  Siehe auch Modell von ABW, WPR-9664W
  Leistungsaufnahme 40 (55) W.

• Price in first year of sale
• 274.00 DM

• External source of data
• Klaus Cremerius

• Mentioned in
• Neckermann-Katalog (Illustrierte Nr. 145 vom 1.9.1954)

• Author
• Model page created by Martin Renz. See "Data change" for further contributors.
