• Country
• Germany

• Manufacturer / Brand
• Neumann, Georg, Laboratorium für Elektroakustik GmbH; Berlin

• Year
• 1972–1985

• Category
• Microphone or Pick-up element

• Radiomuseum.org ID
• 153143

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors

• Main principle
• none

• Wave bands
• - without

• Power type and voltage
• Powered by external power supply or a main unit. / 48 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

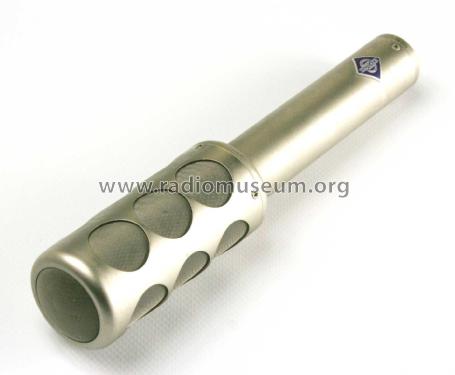

• Model: Solistenmikrophon KMS 85 - Neumann, Georg, Laboratorium f

• Shape
• Miscellaneous shapes - described under notes.

• Dimensions (WHD)
• 40 x 210 x 40 mm / 1.6 x 8.3 x 1.6 inch

• Notes
• Kondensatormikrophon mit Nierencharakteristik. Besonders geeignet für Nahbesprechung durch Gesangs- und Instrumentalsolisten. Anschluß über Klein-Tuchel oder XLR (KMS 85 i).

• Net weight (2.2 lb = 1 kg)
• 0.3 kg / 0 lb 10.6 oz (0.661 lb)

• Source of data
• - - Manufacturers Literature

• Author
• Model page created by Nikolaus Löwe. See "Data change" for further contributors.
