• Year
  • 1959 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 273491

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Number of Transistors
  • 0
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 6 AM circuit(s)     11 FM circuit(s)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • AC/DC-set / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Wooden case
  • from Radiomuseum.org

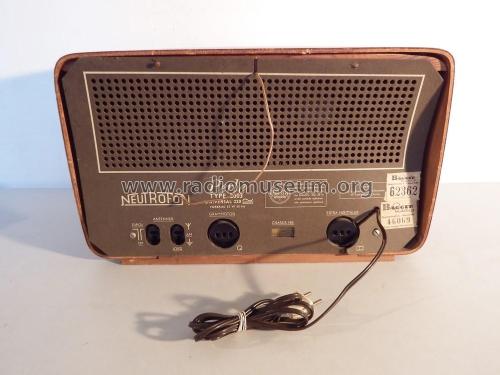

  • Model: Perle 2003 - Neutrofon Poul Petersen;
  • Shape
  • Tablemodel, low profile (big size).
  • Notes
  • Radio has LW, 2 x BC, SW and FM

  • Literature/Schematics (1)
  • -- Schematic
  • Author
  • Model page created by Tomasz Szczesniak. See "Data change" for further contributors.
