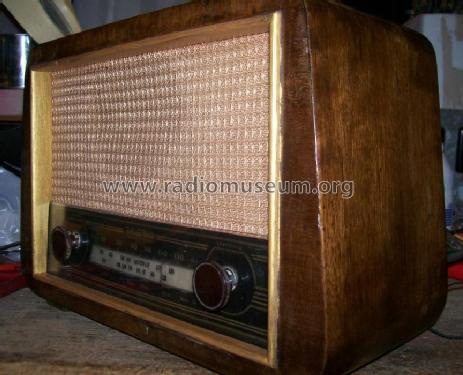

Desconocido ; Noblex Argentina SA; (ID = 510048) Radio
Use red slider bar for more.
Desconocido ; Noblex Argentina SA; (ID = 510046) Radio
Noblex Argentina SA;: Desconocido [Radio] ID = 510046 900x623
Select picture or schematic to display from thumbnails on the right and click for download.
For model Desconocido, Noblex Argentina SA; Nobleza Radio; Buenos Aires

Country:  Argentina
Manufacturer / Brand:  Noblex Argentina SA; Nobleza Radio; Buenos Aires
Year: 1954 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH42 UF41 UBC41 UL41 UY41
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Desconocido - Noblex Argentina SA; Nobleza
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 215 x 330 x 150 mm / 8.5 x 13 x 5.9 inch
Notes Receptor con antena de cuadro interna.
Net weight (2.2 lb = 1 kg) 2.5 kg / 5 lb 8.1 oz (5.507 lb)
Source of data - - Data from my own collection

Model page created by Heriberto Tavella. See "Data change" for further contributors.
