UKW-Super 12642/57 W

UKW-Super 12642/57 W; Nogoton, (ID = 310462) Radio

UKW-Super 12642/57 W; Nogoton, (ID = 2324883) Radio

UKW-Super 12642/57 W; Nogoton, (ID = 2324884) Radio
UKW-Super 12642/57 W; Nogoton, (ID = 2324930) Radio UKW-Super 12642/57 W; Nogoton, (ID = 2324931) Radio
UKW-Super 12642/57 W; Nogoton, (ID = 2324932) Radio UKW-Super 12642/57 W; Nogoton, (ID = 2324933) Radio
UKW-Super 12642/57 W; Nogoton, (ID = 992566) Radio UKW-Super 12642/57 W; Nogoton, (ID = 992567) Radio
UKW-Super 12642/57 W; Nogoton, (ID = 992569) Radio
Use red slider bar for more.
UKW-Super 12642/57 W; Nogoton, (ID = 2324930) Radio

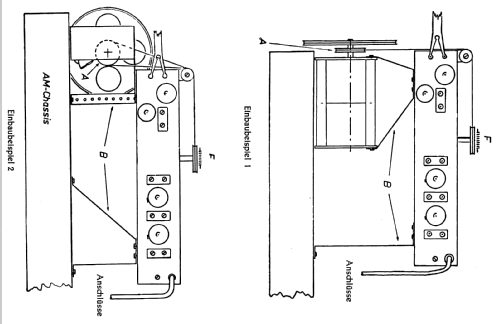

Nogoton,: UKW-Super 12642/57 W [Radio] ID = 2324930 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model UKW-Super 12642/57 W, Nogoton, Norddeutsche Gerätebau; Delmenhorst/Oldenburg

Country:  Germany
Manufacturer / Brand:  Nogoton, Norddeutsche Gerätebau; Delmenhorst/Oldenburg
Brand

Noroton
Year: 1957 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: PCC88 EC92 EF80 EF89
Main principle Superhet with RF-stage; ZF/IF 10900 kHz
Tuned circuits 12 FM circuit(s)
Wave bands FM Broadcast Band Only
Details
Power type and voltage Other, details in remarks or not known. / AC 220 & DC 180-200 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: UKW-Super 12642/57 W - Nogoton, Norddeutsche
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 225 x 48 x 95 mm / 8.9 x 1.9 x 3.7 inch
Notes

Frequenzbereich: 85···105 MHz.

Der Nogoton-UKW-Super 12642/57 W besitzt einen Heiztrafo für die E-Röhren und die PCC88 (7 Volt). Die erforderliche Anodenspannung 180-200 Volt wird dem Hauptgerät entnommen.

Collectors' prices
Mentioned in -- Original-techn. papers.
Literature/Schematics (1) -- Schematic

Model page created by Ernst Schlemm. See "Data change" for further contributors.
