Menuett GW654 ohne magischem Auge

Menuett GW654; Nora; Berlin (ID = 966419) Radio

Menuett GW654; Nora; Berlin (ID = 876898) Radio

Menuett GW654; Nora; Berlin (ID = 4390) Radio
Menuett GW654; Nora; Berlin (ID = 242245) Radio Menuett GW654; Nora; Berlin (ID = 17168) Radio
Menuett GW654; Nora; Berlin (ID = 17169) Radio Menuett GW654; Nora; Berlin (ID = 150676) Radio
Use red slider bar for more.
Menuett GW654; Nora; Berlin (ID = 242245) Radio

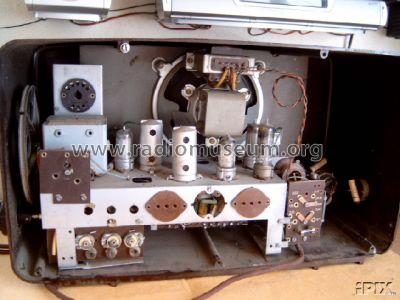

Nora; Berlin: Menuett GW654 [Radio] ID = 242245 900x550
Select picture or schematic to display from thumbnails on the right and click for download.
For model Menuett GW654 ohne magischem Auge, Nora; Berlin

Country:  Germany
Manufacturer / Brand:  Nora; Berlin
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH42 UAF42 UAF42 UL41 UY41
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Ready for FM, has Broadcast, Long Wave, Short wave.
Details
Power type and voltage AC/DC-set / 110; 117; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
Power out
from Radiomuseum.org Model: Menuett GW654 [ohne magischem Auge] - Nora; Berlin
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 470 x 270 x 210 mm / 18.5 x 10.6 x 8.3 inch
Notes FM vorbereitet mit Tuner UKW-P.
Skalenlampen: 2x 18V/0,1A.
Net weight (2.2 lb = 1 kg) 6.7 kg / 14 lb 12.1 oz (14.758 lb)
Price in first year of sale 228.00 DM
Source of data Kat.d. Rundf.Gr.Handel 1950/51 / Radiokatalog Band 1, Ernst Erb
Mentioned in Funkschau (5019)
Literature/Schematics (1) Lange / Nowisch, "Empfängerschaltungen der Radioindustrie"


All listed radios etc. from Nora; Berlin
Here you find 620 models, 538 with images and 338 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Nora; Berlin: Menuett GW654
Threads: 1 | Posts: 2
Hits: 1963     Replies: 1
nora: GW654; Menuett
Helmut Roth
26.Jan.07
  1

Nora GW 654

Wie erweitere ich das derzeit gespeicherte Modell - für UKW vorbereitet - um die Version mit eingebautem UKW?



Wolfgang Bauer
27.Jan.07
  2

Sg. Herr Roth,

bitte das Gerät neu anlegen, ev. als Variante "mit UKW Empfangsteil", wenn das von Nora so ausgeliefert wurde.
MfG. WB.
