Noracord K454

Noracord K454; Nora; Berlin (ID = 2465559) Radio

Noracord K454; Nora; Berlin (ID = 4392) Radio
Noracord K454; Nora; Berlin (ID = 1514239) Radio Noracord K454; Nora; Berlin (ID = 15987) Radio

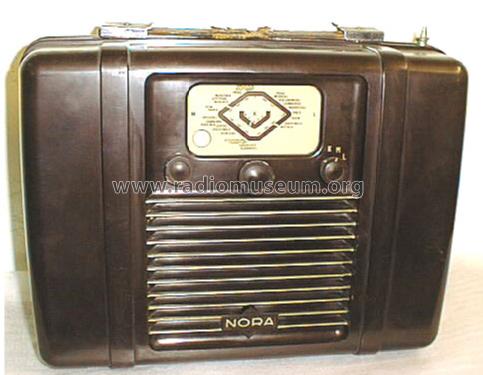

Noracord K454; Nora; Berlin (ID = 56693) Radio Noracord K454; Nora; Berlin (ID = 15989) Radio

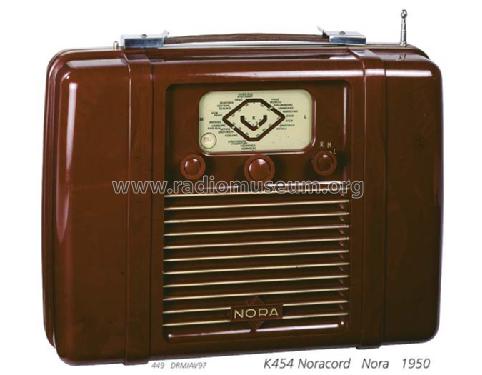

Noracord K454; Nora; Berlin (ID = 15990) Radio Noracord K454; Nora; Berlin (ID = 580) Radio
Use red slider bar for more.
Noracord K454; Nora; Berlin (ID = 1514239) Radio
Nora; Berlin: Noracord K454 [Radio] ID = 1514239 756x668
Select picture or schematic to display from thumbnails on the right and click for download.
For model Noracord K454, Nora; Berlin

Country:  Germany
Manufacturer / Brand:  Nora; Berlin
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: DCH11 DF11 DAF11 DL11
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Storage and/or dry batteries / 1,5 & 90 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: Noracord K454 - Nora; Berlin
Material Bakelite case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 325 x 250 x 120 mm / 12.8 x 9.8 x 4.7 inch
Notes einsetzbares Netzteil KNW gegen Mehrpreis (48,- DM).
Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)
Price in first year of sale 224.00 DM
Source of data Kat.d. Rundf.Gr.Handel 1950/51 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange-Nowisch
Mentioned in Funkschau (5006)
Literature/Schematics (1) Funk-Technik (FT) (5/1950, S. 132 / Neuvorstellung)
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet, das Copyright liegt beim Deutschen Rundfunk Museum (DRM), Berlin und beim Archiv-Verlag (AV). Sie finden eine grössere Abbildung und Schaltbild etc. bei der Loseblatt-Sammlung von DRM/AV.


All listed radios etc. from Nora; Berlin
Here you find 621 models, 539 with images and 338 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
