W321L Presstoffgehäuse

• Country
• Germany

• Manufacturer / Brand
• Nora, Aron, Heliowatt; Berlin

• Year
• 1933–1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 7963

• Picture

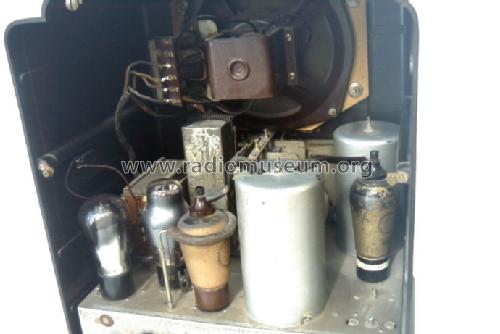

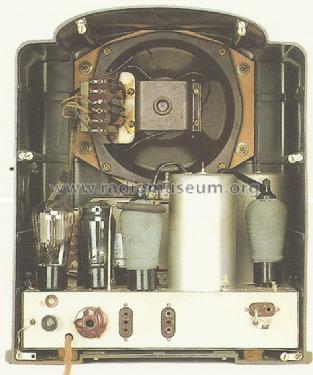

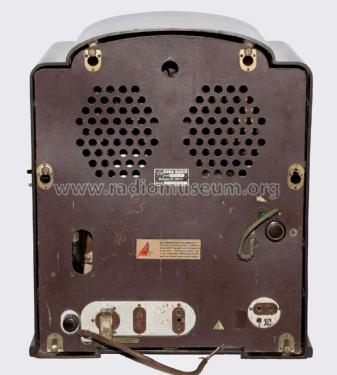

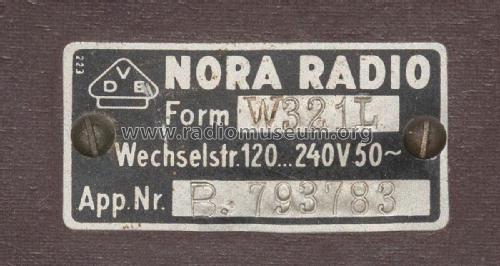

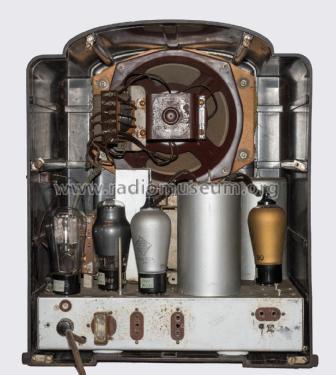

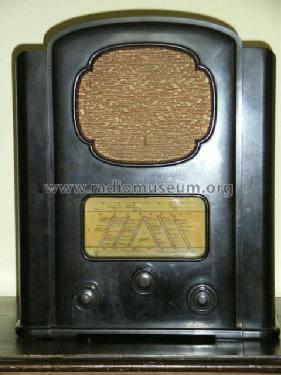

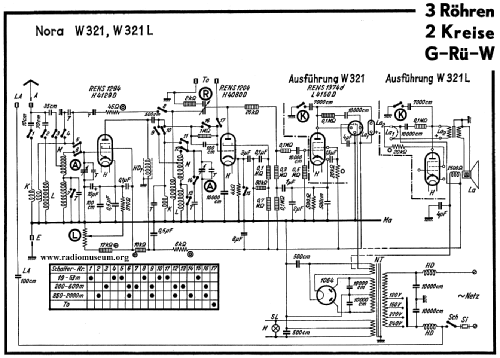

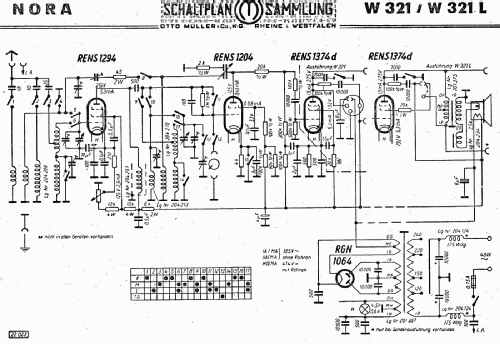

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• RENS1294 RENS1204 RENS1374d RGN1064

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown); 1 Special; 1 AF stage(s)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 120; 150; 220; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: W321L [Presstoffgehäuse] - Nora, Aron, Heliowatt; Berlin

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 355 x 417 x 285 mm / 14 x 16.4 x 11.2 inch

• Net weight (2.2 lb = 1 kg)
• 12.5 kg / 27 lb 8.5 oz (27.533 lb)

• Price in first year of sale
• 220.00 RM !

• Source of data
• Radio-Zentrale Prohaska 1933/34 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange + FS-Bestückungstabellen

• Mentioned in
• Handbuch der Funktechnik und ihrer Grenzgebiete Bände 1 bis 12

• Literature/Schematics (1)
• -- Schematic (OTO-Schaltungen)

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.

• Other Models

• Here you find 633 models, 555 with images and 342 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
