For model Sterling Parsifal-us Ch= 1/616US, Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1960/1961 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 ECH81 EF89 EABC80 EM84 EBC81 EL84 EL84
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, 2 Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-120; 220 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: Sterling Parsifal-us Ch= 1/616US - Nordmende, Norddeutsche Mende-
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 575 x 340 x 255 mm / 22.6 x 13.4 x 10 inch
Notes

The Nordmende Sterling model Parsifal-us is the export version of the domestic Nordmende Parsifal-Stereo 1/616 for 1960/61.
The Parsifal-us has 4 instead of 2 loudspekers: 2 with diameter 6" x 8.5" and 2 with 4" diameter. The bands are two short wave bands (1.5-5.5 mc and 6-19 mc) instead of SW and LW. In SAMS the power transoformer is given as for primary 117 volts but on the title there is AC 110-120 / 220 volts. There are two independant AF channels but not stereo reception. Importer and distributor in the USA was Sterling Hi-Fidelity, Inc., 22-14 40th Ave., Long Island City 1, NY.

Net weight (2.2 lb = 1 kg) 11.2 kg / 24 lb 10.7 oz (24.67 lb)

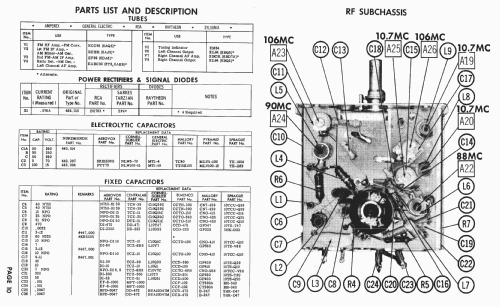

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 1-63, set 612, folder 9)

Model page created by Ernst Erb. See "Data change" for further contributors.



All listed radios etc. from Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Here you find 1720 models, 1611 with images and 1239 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Nordmende,: Sterling Parsifal-us Ch= 1/616US
Threads: 1 | Posts: 3
Hits: 1836     Replies: 2
nordmende: 1/616US; Parsifal-us
Hector Rivera
10.Sep.11
  1

Hello: I recently recived on of these radios. It works fine on BC and SW1. Does not seem to have any reception on SW2 although I am not using an external antenna. The main problem I am inquiring about has to do with only getting reception on FM from 88 to about 100mhz. After that there is no static, no change on the magic eye, nothing. I have not recapped it yet but it sounds nice on both channels. When I put a working ECC 85 from another working radio on this radio reception deteriorates even more, yet the ECC85 from this radio works fine in others. Hopefully someone has already solved a similar problem and can point me in the right direction, Thanks.



PS: the dial glass was broken during shipping. I would be glad to use a non-export one on mine. If you have one for sale, please let me know.

Wolfgang Bauer
15.Sep.11
  2


Hallo,

for the european dial glass look there ==> Dial glass Parsifal

Regards WB.

Hector Rivera
27.Sep.11
  3

I contacted Hans and the glass is no longer available. Anyone with one available, please let me know.
