• Year
  • 1951/1952
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 7752

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Number of Transistors
  • Main principle
  • Superheterodyne (common); ZF/IF 473/10700 kHz
  • Tuned circuits
  • 8 AM circuit(s)     6 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • AC/DC-set / 110; 125; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch
  • Material
  • Wooden case
  • from Radiomuseum.org

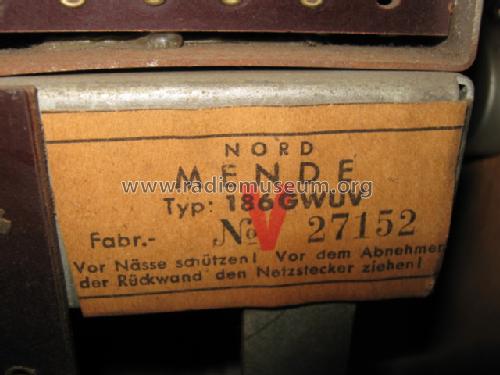

  • Model: 186GWUV - Nordmende, Norddeutsche Mende-
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 515 x 325 x 230 mm / 20.3 x 12.8 x 9.1 inch
  • Notes
  • var.BBr. UKW Demodulation mit Flankengleichrichter. Achtung, je nach Polung des Netzsteckers können auch die Buchsen des Zweitlautsprechers und des Tonabnehmers Netzpotential führen.
  • Net weight (2.2 lb = 1 kg)
  • 9.1 kg / 20 lb 0.7 oz (20.044 lb)
  • Price in first year of sale
  • 348.00 DM
  • Source of data
  • Radiokatalog Band 1, Ernst Erb
  • Picture reference
  • Das Modell ist im «Radiokatalog» (Erb) abgebildet.
