8-Kreis-Super 258GWU

8-Kreis-Super 258GWU; Nordmende, (ID = 1009406) Radio

8-Kreis-Super 258GWU; Nordmende, (ID = 4985) Radio
8-Kreis-Super 258GWU; Nordmende, (ID = 1713141) Radio 8-Kreis-Super 258GWU; Nordmende, (ID = 288755) Radio
8-Kreis-Super 258GWU; Nordmende, (ID = 288756) Radio 8-Kreis-Super 258GWU; Nordmende, (ID = 288757) Radio
8-Kreis-Super 258GWU; Nordmende, (ID = 627861) Radio 8-Kreis-Super 258GWU; Nordmende, (ID = 708299) Radio
8-Kreis-Super 258GWU; Nordmende, (ID = 1402917) Radio 8-Kreis-Super 258GWU; Nordmende, (ID = 1713142) Radio
8-Kreis-Super 258GWU; Nordmende, (ID = 1713143) Radio 8-Kreis-Super 258GWU; Nordmende, (ID = 1713700) Radio
Use red slider bar for more.
8-Kreis-Super 258GWU; Nordmende, (ID = 1713141) Radio
Nordmende,: 8-Kreis-Super 258GWU [Radio] ID = 1713141 760x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model 8-Kreis-Super 258GWU, Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen:
Geräteansicht vorne, original, Holz leicht angeschliffen und mit Ballenmattierung (Nitrobasis) aufgefrischt

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: UCF12 UCH42 UAF42 UF41 UM4 UL41 UY41
Main principle Superheterodyne (common); ZF/IF 473 kHz
Tuned circuits 8 AM circuit(s)
Wave bands Ready for FM, has Broadcast, Long Wave, Short wave.
Details
Power type and voltage AC/DC-set / 110; 125; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 8-Kreis-Super 258GWU - Nordmende, Norddeutsche Mende-
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 510 x 295 x 210 mm / 20.1 x 11.6 x 8.3 inch
Notes variable Bandbreite.
mit eingebautem UKW Pendeler UKW E1.
Price in first year of sale 303.00 DM
Source of data Radiokatalog Band 1, Ernst Erb

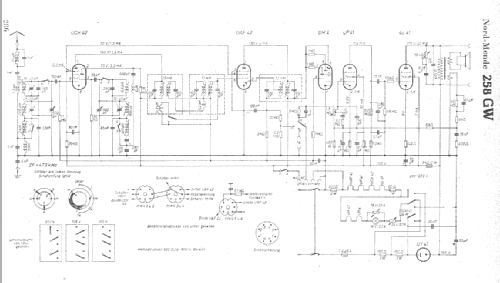

Literature/Schematics (1) Lange / Nowisch, "Empfängerschaltungen der Radioindustrie"
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
