500-10 Ch= 5214A ab Nr. 14501

500-10 Ch= 5214A; Nordmende, (ID = 51954) Radio

500-10 Ch= 5214A; Nordmende, (ID = 59256) Radio

500-10 Ch= 5214A; Nordmende, (ID = 717630) Radio

500-10 Ch= 5214A; Nordmende, (ID = 1020998) Radio
Use red slider bar for more.
500-10 Ch= 5214A; Nordmende, (ID = 51954) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1952/1953 Category: Broadcast Receiver - or past WW2 Tuner

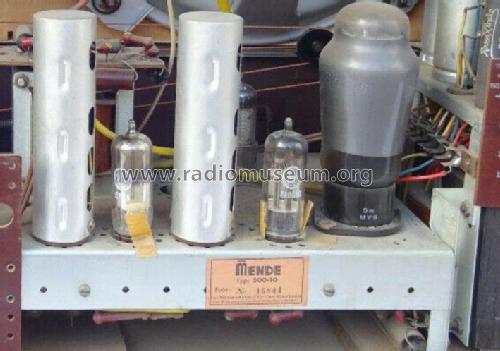

Valves / Tubes 8: EF85 ECH81 ECH81 EF85 EM34 EABC80 EF40 EL12/375
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Super-Heterodyne (Super in general); ZF/IF 468/10700 kHz
Tuned circuits 10 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker 2 Loudspeakers / Ø 25 cm = 9.8 inch
Power out
from Radiomuseum.org Model: 500-10 Ch= 5214A [ab Nr. 14501] - Nordmende, Norddeutsche Mende-
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 640 x 420 x 255 mm / 25.2 x 16.5 x 10 inch
Notes

Bandbreite schaltbar. 2 Mittelwellenbereiche.
Der Grosshandelskatalog führt den UKW-Empfangsbereich 82-102 MHz.

2 Ausführungen:
Nordmende 500-10 mit Chassis 5214 bis Nr. 14500
Nordmende 500-10 mit Chassis 5214A ab Nr. 14501 mit geändertem UKW-Teil.

Im Folgejahrgang 1953/54 kommt das Chassis 5214A noch im Tannhäuser zum Einsatz.

Net weight (2.2 lb = 1 kg) 17.1 kg / 37 lb 10.6 oz (37.665 lb)
Price in first year of sale 538.00 DM
Collectors' prices
Mentioned in Kat.d.Rundf.GrossH.1952/53
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Bernhard Nagel. See "Data change" for further contributors.
