8015 HIFI

8015 HIFI; Nordmende, (ID = 1710736) Radio 8015 HIFI; Nordmende, (ID = 1710737) Radio
8015 HIFI; Nordmende, (ID = 1710738) Radio 8015 HIFI; Nordmende, (ID = 1710739) Radio
8015 HIFI; Nordmende, (ID = 1710740) Radio 8015 HIFI; Nordmende, (ID = 1710741) Radio
8015 HIFI; Nordmende, (ID = 1752709) Radio 8015 HIFI; Nordmende, (ID = 1585820) Radio
8015 HIFI; Nordmende, (ID = 1585821) Radio 8015 HIFI; Nordmende, (ID = 1585822) Radio
Use red slider bar for more.

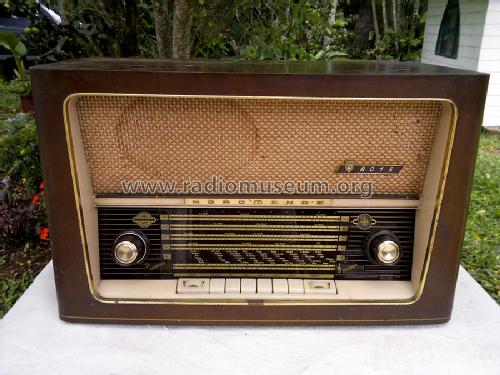

8015 HIFI; Nordmende, (ID = 1710736) Radio
Nordmende,: 8015 HIFI [Radio] ID = 1710736 900x675
Select picture or schematic to display from thumbnails on the right and click for download.
For model 8015 HIFI, Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1957 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH81 EF89 EBC41 EL84 EM84
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
schematic requested
Main principle Superheterodyne (common); 2 AF stage(s); Export model
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220 Volt
Loudspeaker 3 Loudspeakers
Power out 5 W (undistorted)
from Radiomuseum.org Model: 8015 HIFI - Nordmende, Norddeutsche Mende-
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 550 x 340 x 250 mm / 21.7 x 13.4 x 9.8 inch
Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)

Model page created by Jorge Eduardo Pinto-Cubillas. See "Data change" for further contributors.
