For model Arabella 54 Ch= Fidelio 53, Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen:

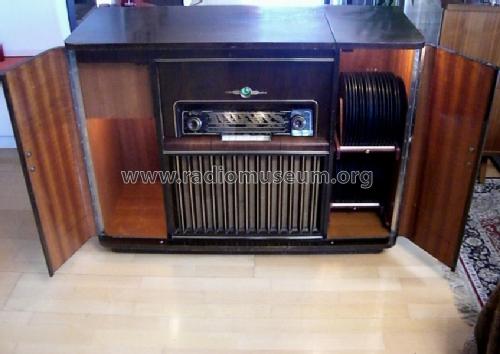

Nordmende Arabella 54 Truhe Hauptansicht. Gerät gehört nicht mir, sondern einem Arbeitskollegen. Ich möchte es zwecks Rettung vermitteln.

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1953/1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: EC92 EC92 ECH81 EF85 EM34 EABC80 EL84
Main principle ZF/IF 468/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Arabella 54 Ch= Fidelio 53 - Nordmende, Norddeutsche Mende-
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1070 x 790 x 430 mm / 42.1 x 31.1 x 16.9 inch
Notes

Ch= Fidelio 53.

Net weight (2.2 lb = 1 kg) 50 kg / 110 lb 2.1 oz (110.132 lb)
Price in first year of sale 965.00 DM
External source of data Erb

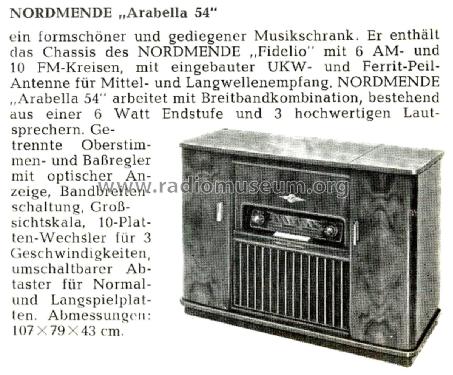

Source of data Kat.d.Rundf.GrossH.1953/54
Literature/Schematics (1) -- Original-techn. papers.
