• Year
  • 1959/1960
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 22305

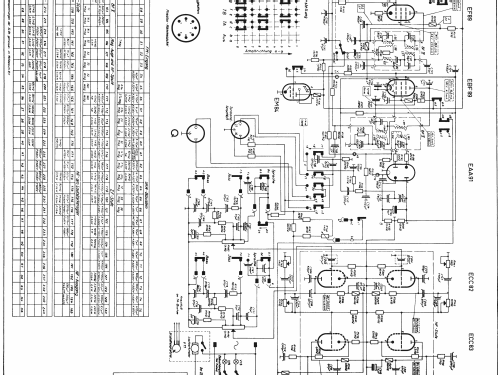

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 10
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 10 AM circuit(s)     13 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Arabella Stereo Ch= 0/633 Stereo [Nussbaum] - Nordmende, Norddeutsche Mende-
  • Shape
  • Console with Push Buttons.
  • Dimensions (WHD)
  • 1400 x 820 x 430 mm / 55.1 x 32.3 x 16.9 inch
  • Notes
  • Stereo-NF-Verstärker mit 2 Endstufen je 5,5 W;

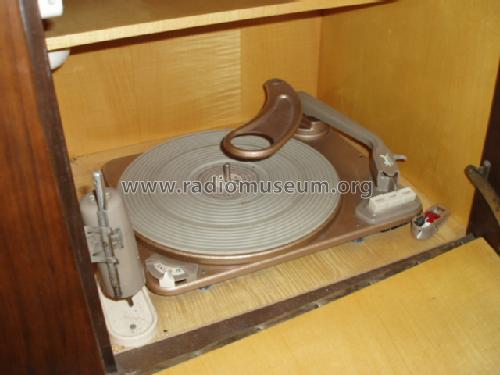

    Phono-Chassis = Dual 1004S/K2.
  • Net weight (2.2 lb = 1 kg)
  • 50 kg / 110 lb 2.1 oz (110.132 lb)
  • Price in first year of sale
  • 998.00 DM
  • External source of data
  • Erb
  • Literature/Schematics (1)
  • -- Original-techn. papers.
