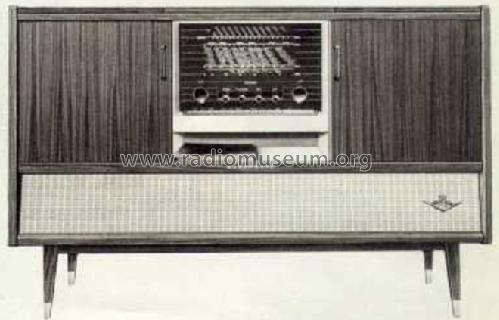

Nordmende,: Arabella-Stereo Ch= 3/683 [Radio] ID = 366200 661x424
Select picture or schematic to display from thumbnails on the right and click for download.
For model Arabella-Stereo Ch= 3/683 mattiert, Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1962/1963 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 11: ECC85 ECH81 EF89 EBF89 EM87 EF80 ECC83 ECC83 ECC83 ELL80 ELL80
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 8 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: Arabella-Stereo Ch= 3/683 [mattiert] - Nordmende, Norddeutsche Mende-
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1310 x 840 x 410 mm / 51.6 x 33.1 x 16.1 inch
Notes Rundfunk-Chassis hat Stereo-NF-Verstärker mit 2 Gegentakt-Endstufen je 8,5 W;
Phono-Chassis = Dual 1008.
Net weight (2.2 lb = 1 kg) 55.5 kg / 122 lb 3.9 oz (122.247 lb)
Price in first year of sale 1'371.00 DM
External source of data Erb
Source of data Handbuch VDRG 1962/1963
Literature/Schematics (1) -- Original-techn. papers.
