Automatic 2.245.A
Use red slider bar for more.
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1969 ? | Category: Television Receiver (TV) or Monitor | ||||
| Valves / Tubes | 6: unknown_Tube PCL86 PCF802 PL504 PY88 PCL85 | ||||
|---|---|---|---|---|---|
| Semiconductors (the count is only for transistors) | 15: BF167 BF173 BF117 AC125 BC213 AF106 AF239 AA112 OA81 OA90 AA143 |
| Main principle | Superheterodyne (common); ZF/IF 38900/ 33400 kHz |
|---|---|
| Wave bands | VHF incl. FM and/or UHF (see notes for details) |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 220 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical |
| Power out | |
| from Radiomuseum.org | Model: Automatic 2.245.A - Nordmende, Norddeutsche Mende- |
| Material | Wooden case |
| Shape | Tablemodel, with any shape - general. |
| Notes | Nordmende Automatic, Typen Nr. 2.245.A; ~60 cm s/w TV mit elektronischem 6 Programm VHF/UHF Tuner nach CCIR B/G, 110 W Leistungsaufnahme, Bildröhrentyp unbekannt, Halbleiter nur auszugsweise angeführt. . Chassis verwendet in Modell Nordmende Imperator 2.243.A, Souverän 2.224.A, Weltklasse 2.240.A, Automatic 2.245.A, Parsifal 2.248.A, Cabinet 2.255.A. |

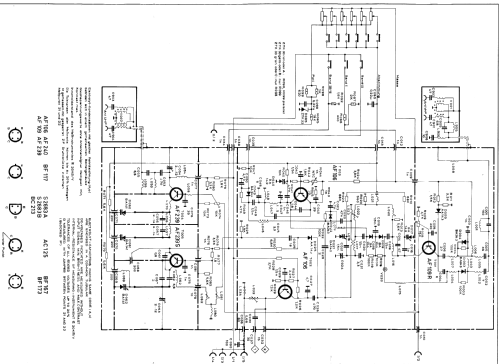

| Source of data | -- Schematic |
Model page created by a member from A. See "Data change" for further contributors.
