Cabinet 2.255.A; Nordmende, (ID = 813649) Television
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1969 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 6: unknown_Tube PCL86 PCF802 PL504 PY88 PCL85
Semiconductors (the count is only for transistors) 15: BF167 BF173 BF117 AC125 BC213 AF106 AF239 AA112 OA81 OA90 AA143
Main principle Superheterodyne (common); ZF/IF 38900/ 33400 kHz
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Cabinet 2.255.A - Nordmende, Norddeutsche Mende-
Material Wooden case
Shape Tablemodel, with any shape - general.
Notes Nordmende Cabinet, Typen Nr. 2.255.A;
~60 cm s/w TV mit elektronischem 6 Programm VHF/UHF Tuner nach CCIR B/G, 110 W Leistungsaufnahme, Bildröhrentyp unbekannt, Halbleiter nur auszugsweise angeführt.
.
Chassis verwendet in Modell Nordmende Imperator 2.243.A, Souverän 2.224.A, Weltklasse 2.240.A, Automatic 2.245.A, Parsifal 2.248.A, Cabinet 2.255.A.

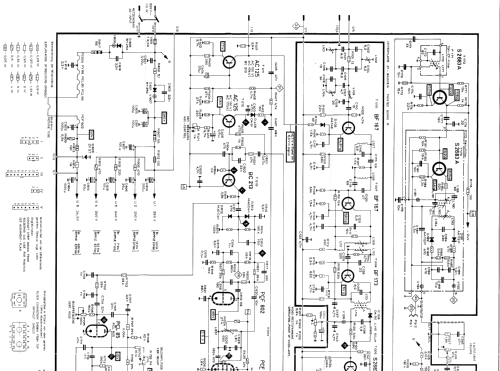

Source of data -- Schematic

Model page created by a member from A. See "Data change" for further contributors.
