• Year
  • 1955/1956
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 20267

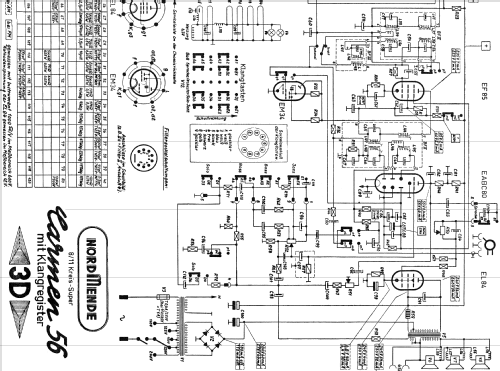

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Number of Transistors
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 8 AM circuit(s)     11 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110, 125, 150, 220, 240 Volt
  • Loudspeaker
  • 3 Loudspeakers
  • Power out
  • 6 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Carmen 56/3D Ch= 513 [mit Klangregister] - Nordmende, Norddeutsche Mende-
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 575 x 375 x 265 mm / 22.6 x 14.8 x 10.4 inch
  • Notes
  • Bandbreite schaltbar;  Gleichrichter MF5100 = AEG B250C100.

  • Net weight (2.2 lb = 1 kg)
  • 12 kg / 26 lb 6.9 oz (26.432 lb)
  • Price in first year of sale
  • 338.00 DM
  • External source of data
  • Erb
  • Literature/Schematics (1)
  • -- Original-techn. papers.
