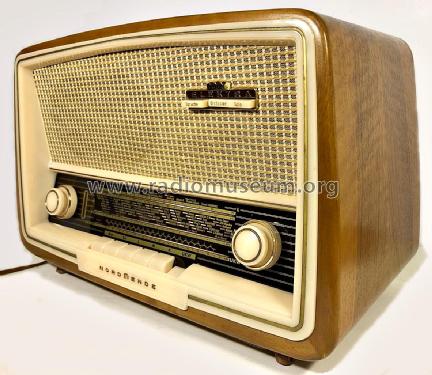

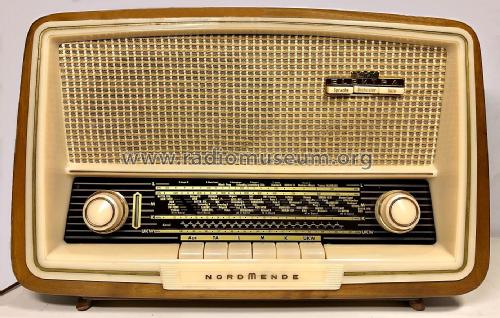

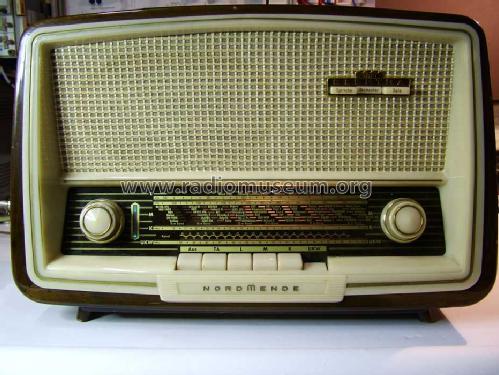

Elektra E13 Ch= 1/613

Elektra E13 Ch= 1/613; Nordmende, (ID = 296682) Radio

Elektra E13 Ch= 1/613; Nordmende, (ID = 296683) Radio

Elektra E13 Ch= 1/613; Nordmende, (ID = 800341) Radio

Elektra E13 Ch= 1/613; Nordmende, (ID = 800342) Radio

Elektra E13 Ch= 1/613; Nordmende, (ID = 800343) Radio
Elektra E13 Ch= 1/613; Nordmende, (ID = 22506) Radio Elektra E13 Ch= 1/613; Nordmende, (ID = 630027) Radio
Elektra E13 Ch= 1/613; Nordmende, (ID = 630028) Radio Elektra E13 Ch= 1/613; Nordmende, (ID = 1297357) Radio
Elektra E13 Ch= 1/613; Nordmende, (ID = 630029) Radio Elektra E13 Ch= 1/613; Nordmende, (ID = 372747) Radio
Elektra E13 Ch= 1/613; Nordmende, (ID = 16565) Radio Elektra E13 Ch= 1/613; Nordmende, (ID = 22507) Radio
Elektra E13 Ch= 1/613; Nordmende, (ID = 22508) Radio Elektra E13 Ch= 1/613; Nordmende, (ID = 630030) Radio
Use red slider bar for more.
Elektra E13 Ch= 1/613; Nordmende, (ID = 22506) Radio
Nordmende,: Elektra E13 Ch= 1/613 [Radio] ID = 22506 933x633
Select picture or schematic to display from thumbnails on the right and click for download.
For model Elektra E13 Ch= 1/613, Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1960/1961 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM84 EL84
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110, 125, 150, 220, 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Elektra E13 Ch= 1/613 - Nordmende, Norddeutsche Mende-
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 425 x 275 x 220 mm / 16.7 x 10.8 x 8.7 inch
Net weight (2.2 lb = 1 kg) 7.2 kg / 15 lb 13.7 oz (15.859 lb)
Price in first year of sale 269.00 DM
Collectors' prices
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1960/61
Literature/Schematics (1) -- Original-techn. papers.


All listed radios etc. from Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Here you find 1694 models, 1581 with images and 1213 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Nordmende,: Elektra E13 Ch= 1/613
Threads: 1 | Posts: 6
Hits: 2030     Replies: 5
nordmende: 1/613; Elektra
Gregory Hey
17.Feb.07
  1

Hello,

I am restoring this particular radio and am wondering if it would it be possible for the poster of this schematic to do a re-scan? Unfortunately the schematic posted is too blury and impossible to read.

Many Thanks

Greg Hey

Ernst Erb
17.Feb.07
  2 Dear Greg
Your are quite right and I will ask the Schematic Admin, Arpad Roth, to contact the uploader, Andreas Hahn who most probably will not read something else but German. I hope you soon get a better plan. Please answer here if there is no result within 7 days.
Gregory Hey
17.Feb.07
  3

Excellent! Thank you very much! :-)

Ernst Erb
17.Feb.07
  4 Dear Greg
I don't know if you saw them: Arpad had them as originals and has prepared and uploaded them (two halfs). I see that they are excellent - magnifying by 400 % everything without any pixeling - and well readable.
Gregory Hey
17.Feb.07
  5

Me again. I measured the resistance on the bridge rectifier. The measurements were .6 megaohms in one direction and .5megaohms in the other. I removed the rectifier and pulled it apart. The cathode plates were almost burnt looking. Would you or anyone know how I can repair or replace this part? Please keep in mind, I am new at this.

Thanks

Greg

Ernst Erb
22.Feb.07
  6

Dear Greg
I just notice that you did not receiva an answer yet.
There are some members who are reluctant to answer if the poster has never done something for RMorg. They normally don't notice that you are also a new member, not only "new at this".

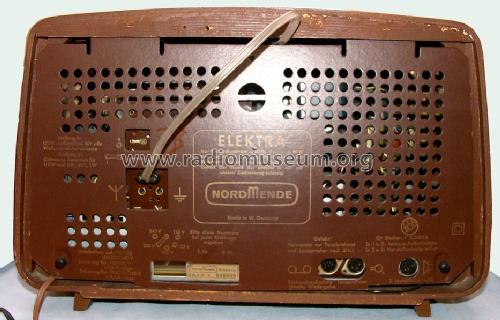

You could for instance take a photo of the chassis and the "back wall" and load it to the model to get UACS points. The model misses these but shows the schematics.

Go to the model page please and click the apropriate link, read the blue info buttons (after clicking them). If you also read this HOWTO-article it will be very easy - and you get some new friends who help you ;-)

For your problem: I would not advise to repair this part. You would normally also not rebuild a tube. Buy an other one. If you don't get a selenic (I presume that it is still one of these if it id "dead") you can build it with 4 Si-Diodes but would have to introduce a small resistant to get the same relations (voltage). Si-Diodes have a low inner resitancy).


Nordmende,: Elektra E13 Ch= 1/613
End of forum contributions about this model
