For model Elektra U13 Ch= 0/613, Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen:
Nordmende Elektra Ch= Nr. U13/

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1959/1960 Category: Broadcast Receiver - or past WW2 Tuner

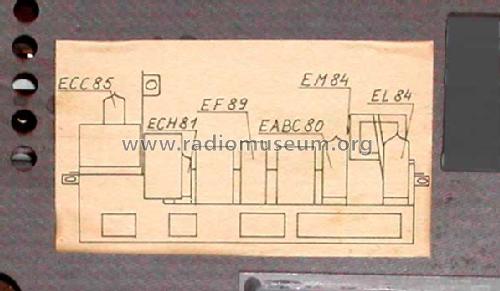

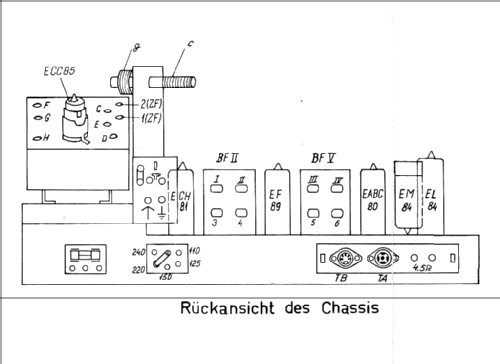

Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM84 EL84
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110, 125, 150, 220, 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Elektra U13 Ch= 0/613 - Nordmende, Norddeutsche Mende-
Material Wooden case

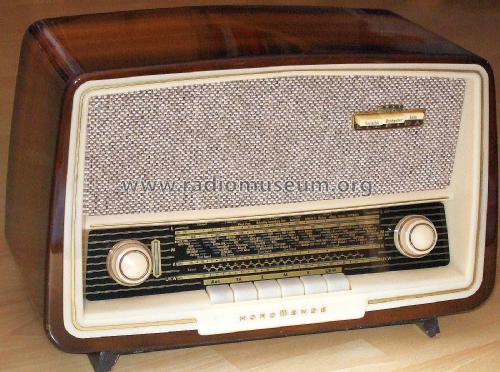

Shape Tablemodel with Push Buttons.
Dimensions (WHD) 425 x 260 x 220 mm / 16.7 x 10.2 x 8.7 inch
Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)
Price in first year of sale 245.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1959/60

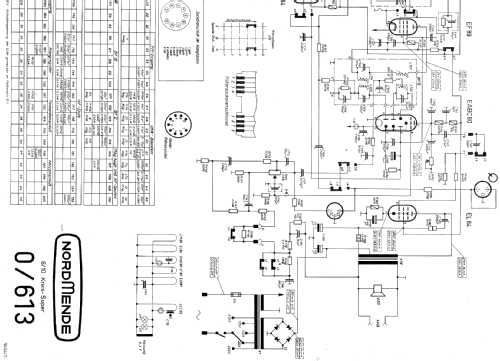

Literature/Schematics (1) -- Original-techn. papers.
