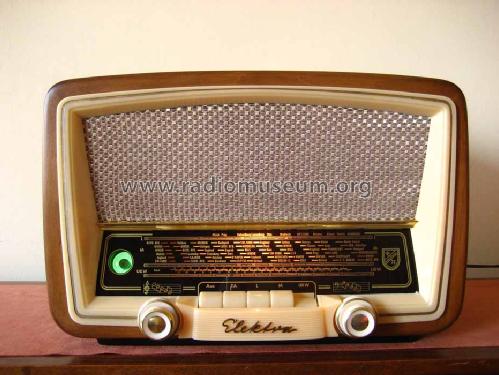

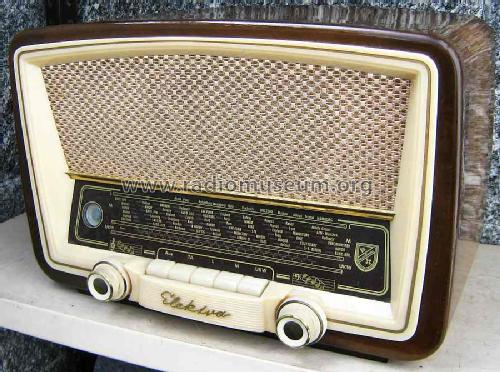

Elektra 56 Ch= 500; Nordmende, (ID = 14123) Radio
Nordmende,: Elektra 56 Ch= 500 [Radio] ID = 14123 836x588
Select picture or schematic to display from thumbnails on the right and click for download.
For model Elektra 56 Ch= 500, Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1955/1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM34 EL84
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110, 125, 150, 220, 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 5 W (unknown quality)
from Radiomuseum.org Model: Elektra 56 Ch= 500 - Nordmende, Norddeutsche Mende-
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 400 x 260 x 205 mm / 15.7 x 10.2 x 8.1 inch
Net weight (2.2 lb = 1 kg) 6.5 kg / 14 lb 5.1 oz (14.317 lb)
Price in first year of sale 224.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1955/56
Mentioned in -- Schematic (D.E. Ravalico, Il Radiolibro, 16° edizione, 1957, Hoepli)
Literature/Schematics (1) -- Original-techn. papers.
