Favorit 57 Ch= 764

• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1956/1957

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 20867

• Picture

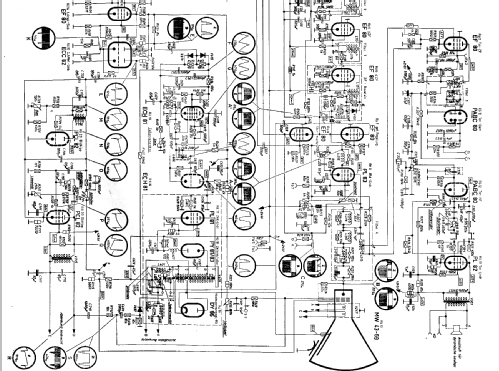

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 20

• Valves / Tubes
• PCC84 PCF80 EF80 EF80 EF80 EF80 PL83 EF80 EF80 EF80 ECC82 PCL82 ECH81 PL81 PY81 DY86 EF80 PABC80 PL82 MW43-69

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• Wave Bands given in the notes.

• Details
• Radio Control (+Remote Wire etc)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Favorit 57 Ch= 764 - Nordmende, Norddeutsche Mende-

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 538 x 853 x 528 mm / 21.2 x 33.6 x 20.8 inch

• Notes
• VHF-Band I & III.

• Net weight (2.2 lb = 1 kg)
• 44 kg / 96 lb 14.7 oz (96.916 lb)

• Price in first year of sale
• 1,098.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1956/57
