• Year
  • 1962/1963
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 24539

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org

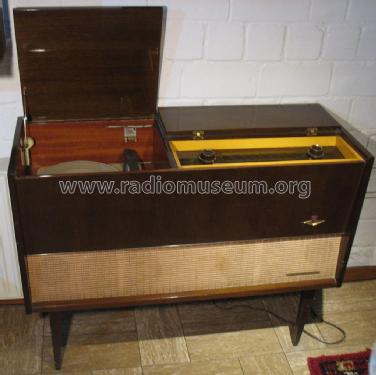

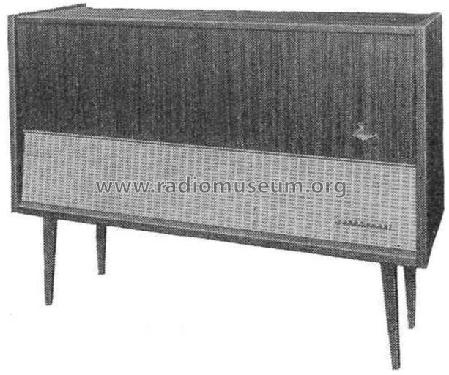

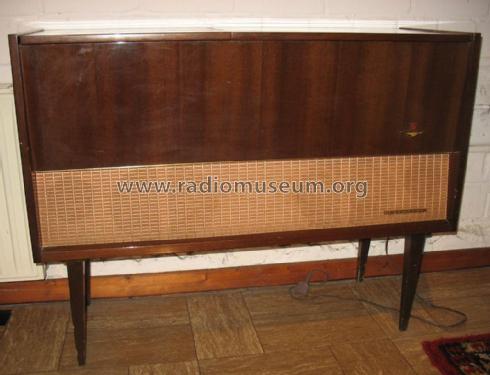

  • Model: Immensee-Stereo Ch= 3/616 [poliert] - Nordmende, Norddeutsche Mende-
  • Shape
  • Console with Push Buttons.
  • Dimensions (WHD)
  • 990 x 850 x 360 mm / 39 x 33.5 x 14.2 inch
  • Notes
  • Rundfunk-Chassis = Parsifal;
    Phono-Chassis = Dual 1007.
  • Net weight (2.2 lb = 1 kg)
  • 31.1 kg / 68 lb 8 oz (68.502 lb)
  • Price in first year of sale
  • 825.00 DM
  • External source of data
  • Erb
  • Literature/Schematics (1)

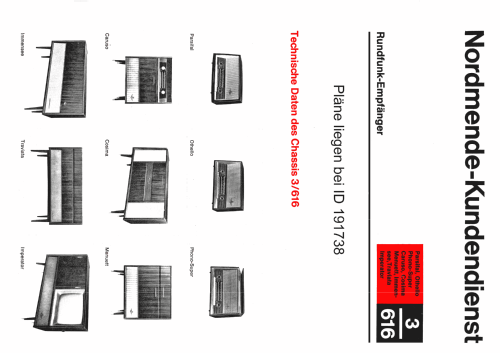

  • -- Original-techn. papers.
