• Year
  • 1969 ?
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 180664

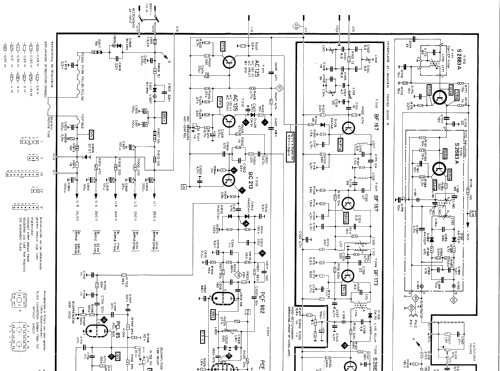

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Number of Transistors
  • 15
  • Main principle
  • Superheterodyne (common); ZF/IF 38900/ 33400 kHz
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Imperator 2.243.A - Nordmende, Norddeutsche Mende-
  • Shape
  • Tablemodel, with any shape - general.
  • Notes
  • Nordmende Imperator, Typen Nr. 2.243.A;
    ~60 cm s/w TV mit elektronischem 6 Programm VHF/UHF Tuner nach CCIR B/G, 110 W Leistungsaufnahme, Bildröhrentyp unbekannt, Halbleiter nur auszugsweise angeführt.
    .
    Chassis verwendet in Modell Nordmende Imperator 2.243.A, Souverän 2.224.A, Weltklasse 2.240.A, Automatic 2.245.A, Parsifal 2.248.A, Cabinet 2.255.A.
  • Source of data
  • -- Schematic
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
