• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1962/1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 24537

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM84 EBC81 EL84 EL84

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Menuett-Stereo Ch= 3/616 [Nussbaum] - Nordmende, Norddeutsche Mende-

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 720 x 810 x 380 mm / 28.3 x 31.9 x 15 inch

• Notes
• Rundfunk-Chassis = Parsifal;

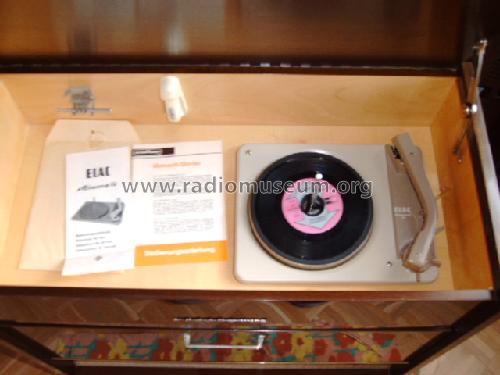

  Phono-Chassis = Dual 1007.

• Net weight (2.2 lb = 1 kg)
• 31.1 kg / 68 lb 8 oz (68.502 lb)

• Price in first year of sale
• 776.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1962/1963

• Literature/Schematics (1)
• -- Original-techn. papers.
