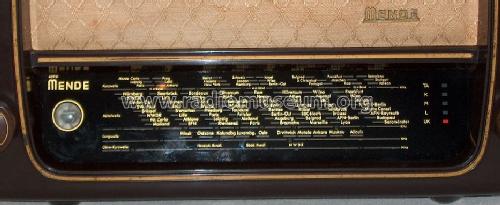

Nordmende,: P-186WU [Radio] ID = 63342 791x600
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1951/1952 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 5: ECH42 EF41 EBF80 EL41 EM34 | ||||
|---|---|---|---|---|---|
| Semiconductors (the count is only for transistors) | Tr.Gl.=Metal-rectif. |
| Main principle | Superheterodyne (common); ZF/IF 473/10700 kHz |
|---|---|
| Tuned circuits | 8 AM circuit(s) 6 FM circuit(s) |
| Wave bands | Broadcast, Long Wave, Short Wave plus FM or UHF. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch |
| Power out | |
| from Radiomuseum.org | Model: P-186WU - Nordmende, Norddeutsche Mende- |
| Material | Bakelite case |
| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 515 x 325 x 230 mm / 20.3 x 12.8 x 9.1 inch |
| Notes | Bandbreite umschaltbar; UKW 84···102 MHz. Zwei Ge-Dioden zur UKW-Demodulation. Verbesserte Auffindbarkeit, da am Schaltplan nur 186WU zu sehen ist, jedoch auf einem Prospekt P186WU steht. |
| Net weight (2.2 lb = 1 kg) | 8.8 kg / 19 lb 6.1 oz (19.383 lb) |
| Price in first year of sale | 295.00 DM |
| Source of data | Kat.d.Rundf.GrossH.1951/52 / Radiokatalog Band 1, Ernst Erb |
| Literature/Schematics (1) | -- Schematic |
| Picture reference | Das Modell ist im «Radiokatalog» (Erb) abgebildet. |
